IS42RM32400E, IS42SM81600E 128Mb Mobile Synchronous DRAM

IS42RM32400E Description

IS42SM81600E / IS42SM16800E / IS42SM32400E IS42RM81600E / IS42RM16800E / IS42RM32400E 16Mx8, 8Mx16, 4Mx32 128Mb Mobile Synchronous DRAM .
ISSI's 128Mb Mobile Synchronous DRAM achieves highspeed data transfer using pipeline architecture.

IS42RM32400E Features

* Fully synchronous; all signals referenced to a positive clock edge
* Internal bank for hiding row access and precharge
* Programmable CAS latency: 2, 3
* Programmable Burst Length: 1, 2, 4, 8, and Full Page
* Programmable Burst Sequence:
* Sequ

IS42RM32400E Applications

* Both TSOP and BGA packages are offered, including industrial grade products. KEY TIMING PARAMETERS Parameter CLK Cycle Time CAS Latency = 3 CAS Latency = 2 CLK Frequency CAS Latency = 3 CAS Latency = 2 Access Time from CLK CAS Latency = 3 CAS Latency = 2 5.4 8 5.4 8 166 100 143 100 6 10 7 10 -6

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS42RM32400E, IS42SM81600E. Please refer to the document for exact specifications by model.

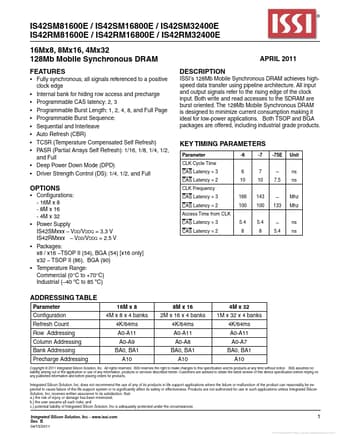

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS42RM32400E, IS42SM81600E
Manufacturer
ISSI
File Size
402.44 KB
Datasheet
IS42SM81600E_ISSI.pdf
Description
128Mb Mobile Synchronous DRAM
Note
This datasheet PDF includes multiple part numbers: IS42RM32400E, IS42SM81600E.
Please refer to the document for exact specifications by model.
