IS42RM32400G, IS42SM32400G 1M x 32Bits x 4Banks Mobile Synchronous DRAM

IS42RM32400G Description

IS42/45SM/RM/VM32400G 1M x 32Bits x 4Banks Mobile Synchronous DRAM .
These IS42/45SM/RM/VM32400G are mobile 134,217,728 bits CMOS Synchronous DRAM organized as 4 banks of 1,048,576 words x 32 bits.

IS42RM32400G Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply
* Auto refresh and self refresh
* All pins are compatible with LVCMOS interface
* 4K refresh cycle / 64ms
* Programmable Burst Length and Burst Type
* 1, 2, 4, 8 or Full Page for Sequential Burst
* 4 o

IS42RM32400G Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS42RM32400G, IS42SM32400G. Please refer to the document for exact specifications by model.

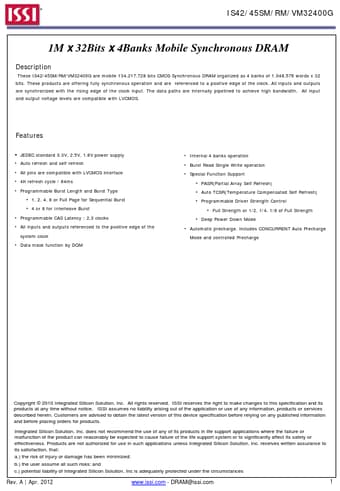

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS42RM32400G, IS42SM32400G
Manufacturer
ISSI
File Size
333.06 KB
Datasheet
IS42SM32400G-ISSI.pdf
Description
1M x 32Bits x 4Banks Mobile Synchronous DRAM
Note
This datasheet PDF includes multiple part numbers: IS42RM32400G, IS42SM32400G.
Please refer to the document for exact specifications by model.
