IS42RM32400F 1M x 32Bits x 4Banks Mobile Synchronous DRAM

IS42RM32400F Description

IS42RM32400F 1M x 32Bits x 4Banks Mobile Synchronous DRAM .
These IS42RM32400F are mobile 134,217,728 bits CMOS Synchronous DRAM organized as 4 banks of 1,048,576 words x 32 bits.

IS42RM32400F Features

* JEDEC standard 2.5V power supply.
* Auto refresh and self refresh.
* All pins are compatible with LVCMOS interface.
* 4K refresh cycle / 64ms.
* Programmable Burst Length and Burst Type. - 1, 2, 4, 8 or Full Page for Sequential Burst. - 4 or 8 for Interleave Bur

IS42RM32400F Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

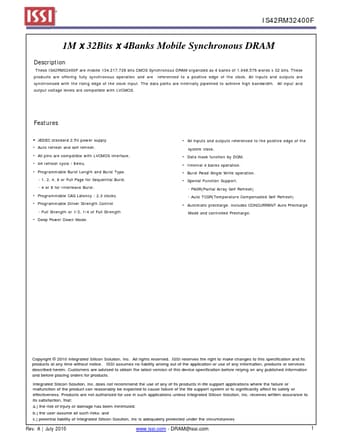

Preview of IS42RM32400F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS42RM32400F
Manufacturer
ISSI
File Size
348.23 KB
Datasheet
IS42RM32400F-ISSI.pdf
Description
1M x 32Bits x 4Banks Mobile Synchronous DRAM
