IS42SM32160E - 4M x 32Bits x 4Banks Mobile Synchronous DRAM

IS42SM32160E Description

IS42/45SM/RM/VM32160E 4M x 32Bits x 4Banks Mobile Synchronous DRAM .
These IS42/45SM/RM/VM32160E are mobile 536,870,912 bits CMOS Synchronous DRAM organized as 4 banks of 4,194,304 words x 32 bits.

IS42SM32160E Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply
* Auto refresh and self refresh
* All pins are compatible with LVCMOS interface
* 8K refresh cycle every 16ms (A2 grade) or 64 ms (Industrial, A1 grade)
* Programmable Burst Length and Burst Type - 1, 2, 4, 8 or Full

📥 Download Datasheet

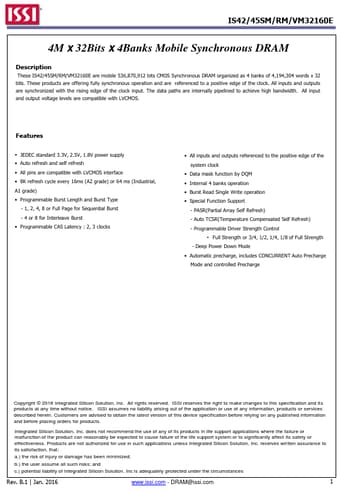

Preview of IS42SM32160E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS42SM32160E
Manufacturer
ISSI
File Size
592.91 KB
Datasheet
IS42SM32160E-ISSI.pdf
Description
4M x 32Bits x 4Banks Mobile Synchronous DRAM
