IS43LD16160A Datasheet - ISSI

256Mb Mobile LPDDR2 S4 SDRAM

IS43LD16160A Features

* Low-voltage Core and I/O Power Supplies VDD2 = 1.14-1.30V, VDDCA/VDDQ = 1.14-1.30V, VDD1 = 1.70-1.95V

* High Speed Un-terminated Logic(HSUL_12) I/O Interface

* Clock Frequency Range : 10MHz to 533MHz (data rate range : 20Mbps to 1066Mbps per I/O)

* Four-bit Pre-fetc

IS43LD16160A General Description

AUGUST 2017 The IS43/46LD16160A/32800A is 256Mbit CMOS LPDDR2 DRAM. The device is organized as 4 banks of 4Meg words of 16bits or 2Meg words of 32bits. This product uses a double-data-rate architecture to achieve high-speed operation. The double data rate architecture is essentially a 4N prefetch .

IS43LD16160A Datasheet (6.88 MB)

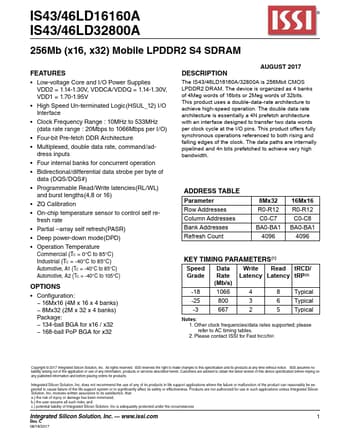

IS43LD16160A Datasheet Preview — Preview of IS43LD16160A PDF

Datasheet Details

Part number:

IS43LD16160A

Manufacturer:

ISSI

File Size:

6.88 MB

Description:

256mb mobile lpddr2 s4 sdram.
