IS61VVF409618B, IS61LF204836B, 2M x 36 / 4M x 18 / 72 Mb SYNCHRONOUS FLOW-THROUGH STATIC RAM

IS61LF204836B, IS61VF/VVF204836B IS61LF409618B, IS61VF/VVF409618B 2M x 36, 4M x 18 72 Mb SYNCHRONOUS FLOW-THROUGH STATIC RAM .
The 72Mb product family features high-speed, low-power synchronous static RAMs designed to provide burstable, high-performance memory for communicati.

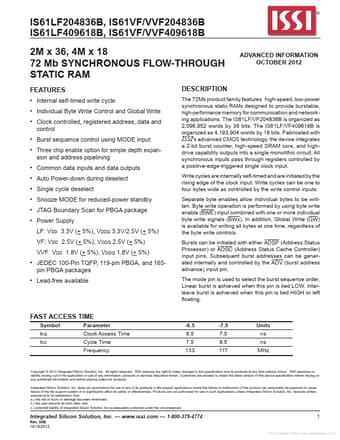

datasheet Preview Page 1 from Datasheet4u.com

IS61LF204836B_ISSI.pdf

IS61VVF409618B Datasheet Preview — This datasheet PDF includes multiple part numbers: IS61VVF409618B, IS61LF204836B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS61VVF409618B, IS61LF204836B

Manufacturer:

ISSI

File Size:

2.37 MB

Description:

2M x 36 / 4M x 18 / 72 Mb SYNCHRONOUS FLOW-THROUGH STATIC RAM

Note:

This datasheet PDF includes multiple part numbers: IS61VVF409618B, IS61LF204836B.
Please refer to the document for exact specifications by model.

Features

* Internal self-timed write cycle
* Individual Byte Write Control and Global Write
* Clock controlled, registered address, data and control
* Burst sequence control using MODE input
* Three chip enable option for simple depth expansion and address pipelin

Applications

* The IS61LF/VF204836B is organized as 2,096,952 words by 36 bits. The IS61LF/VF409618B is organized as 4,193,904 words by 18 bits. Fabricated with ISSI's advanced CMOS technology, the device integrates a 2-bit burst counter, high-speed SRAM core, and highdrive capability outputs into a single monoli
