IS65WV102416DALL Datasheet - ISSI

IS65WV102416DALL ULTRA LOW POWER & LOW POWER CMOS STATIC RAM

The ISSI IS62/65WV102416DALL, IS62/65WV102416DBLL are ULTRA LOW POWER CMOS 16Mbit static RAMs organized as 1M words by 16 bits. It is fabricated using ISSI's highperformance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and l.

IS65WV102416DALL Features

* High-speed access time: 45ns, 55ns.

* CMOS low power operation

* 25 µA (typical) CMOS standby

* CMOS for optimum speed and power and TTL compatible interface levels

* Single power supply

* 1.65V~1.98V VDD (IS62/65WV102416DALL)

* 2.2V~3.6V VDD (IS62/65WV10241

IS65WV102416DALL Datasheet (906.84 KB)

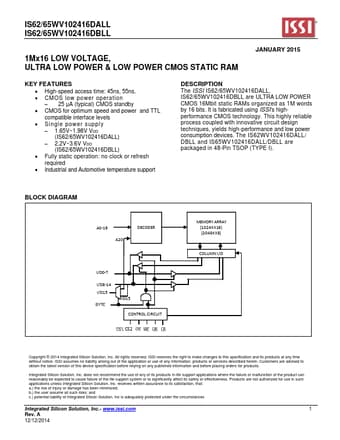

Preview of IS65WV102416DALL PDF
IS65WV102416DALL Datasheet Preview Page 2 IS65WV102416DALL Datasheet Preview Page 3

Datasheet Details

Part number:

IS65WV102416DALL

Manufacturer:

ISSI

File Size:

906.84 KB

Description:

Ultra low power & low power cmos static ram.
