IS65WV102416EBLL, IS62WV102416EALL - ULTRA LOW POWER CMOS STATIC RAM

ISSI

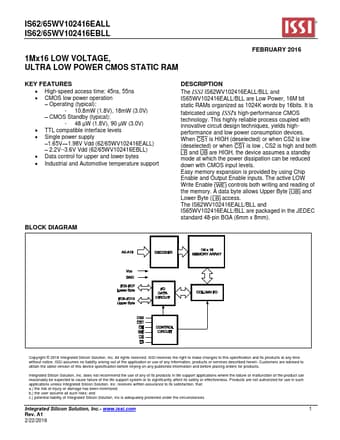

IS65WV102416EBLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS65WV102416EBLL, IS62WV102416EALL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS65WV102416EBLL, IS62WV102416EALL
Manufacturer	ISSI
File Size	1.03 MB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62WV102416EALL-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS65WV102416EBLL, IS62WV102416EALL. Please refer to the document for exact specifications by model.

IS65WV102416EBLL Product details

Description

The IS62WV102416EALL/BLL and IS65WV102416EALL/BLL are Low Power, 16M bit static RAMs organized as 1024K words by 16bits.It is fabricated using 's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devices.When is HIGH (deselected) or when CS2 is low (deselected) or when is low , CS2 is high and both and are HIGH, the device assumes a standby mode at which the power dissipatio

Features

High-speed access time: 45ns, 55ns.
CMOS low power operation.
Operating (typical): - 10.8mW (1.8V), 18mW (3.0V).
CMOS Standby (typical): - 48 µW (1.8V), 90 µW (3.0V).
TTL compatible interface levels.
Single power supply.
1.65V.
1.98V Vdd (62/65WV102416EALL).
2.2V--3.6V Vdd (62/65WV102416EBLL).
Data control for upper and lower bytes.
Industrial and Automotive temperature support BLOCK.
