IT7612 - 2.0A 380kHz 23V High Efficiency Step-Down DC/DC Converter

Product Overview

ITE Tech

Datasheet Details

Part number	IT7612
Manufacturer	ITE Tech
File Size	0.98 MB
Description	2.0A 380kHz 23V High Efficiency Step-Down DC/DC Converter
Datasheet	IT7612 Datasheet

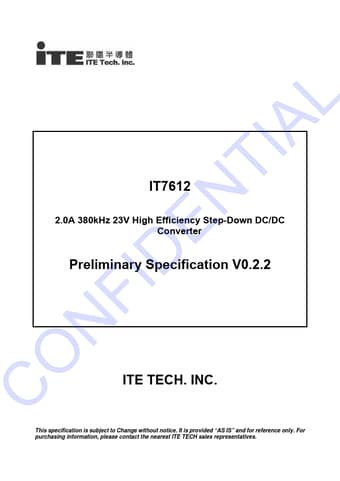

Additional preview pages of the IT7612 datasheet.

Product details

Description

The IT7612 is a high efficiency step-down DC/DC converter series with the output current up to 2A and incorporates low on-resistance NMOS at the high side.

Features

listed is a high performance trans-conductance error amplifier that provides tight voltage regulation and accuracy under transient conditions. Embedded is Under Voltage Lockout (UVLO) circuit to prevent the device start-up under 4.5V input voltage threshold. In addition, it features an over-current protection and thermal shutdown. To improve the light load efficiency, it is designed as the power saving mode (PSM) to minimize the switching loss by reducing the switching frequency. The IT7612 is a.
