SC5018-1R2MU - (SC5015 - SC5026) SMD High Current Inductor

Product Overview

Part number	SC5018-1R2MU
Manufacturer	ITG
File Size	246.00 KB
Description	(SC5015 - SC5026) SMD High Current Inductor
Datasheet	SC5018-1R2MU Datasheet
Note	This datasheet PDF includes multiple part numbers: SC5018-1R2MU, SC5015. Please refer to the document for exact specifications by model.
Additional preview pages of the SC5018-1R2MU datasheet.

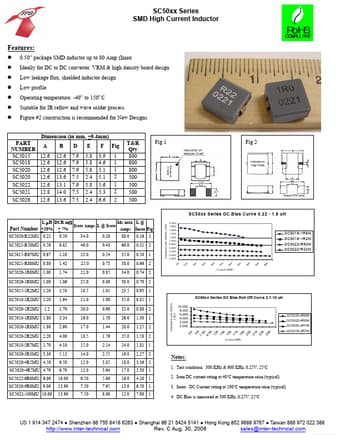

z z z z z z z 0.50” package SMD inductor up to 80 Amp (Imax Ideally for DC to DC converter. VRM & high density board design Low leakage flux, shielded inductor design Low profile Operating temperature: -400 to 1500 C Suitable for IR reflow and wave solder process Figure #2 construction is recommended for New Designs Dimension (in mm, +0.4mm) PART NUMBER SC5015 SC5018 SC5020 SC5020 SC5022 SC5021 SC5026 A 12.6 12.6 12.6 12.6 12.6 12.8 12.6 B 12.6 12.6 12.6 13.6 13.1 14.0 13.6 D 7.9 7.9 7.9 7.5 7.
