SC5018-2R7MU Datasheet - Multicomp

SC5018-2R7MU Inductor

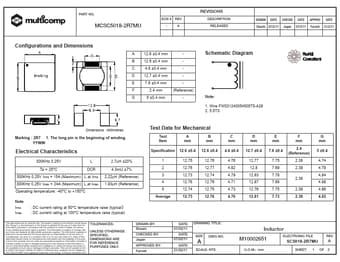

RELEASED DRAWN DATE CHECKD Jagan DATE 07/2/11 APPRVD Farnell DATE 21/2/11 MCSC5018-2R7MU - Shashi 07/2/11 Configurations and Dimensions A B C D E F G 12.6 ±0.4 mm 12.6 ±0.4 mm 4.6 ±0.4 mm 12.7 ±0.4 mm 7.6 ±0.4 mm 2.4 mm 5 ±0.4 mm (Reference) Note: 1. Wire FW031240054505T5-A28 2. 5.5TS Schematic.

SC5018-2R7MU-Multicomp.pdf

Preview of SC5018-2R7MU PDF
SC5018-2R7MU Datasheet Preview Page 2 SC5018-2R7MU Datasheet Preview Page 3

Datasheet Details

Part number:

SC5018-2R7MU

Manufacturer:

Multicomp

File Size:

132.03 KB

Description:

Inductor.
