V10K350-5 Datasheet - ITG

V10K350-5 Metal Oxide Varistor

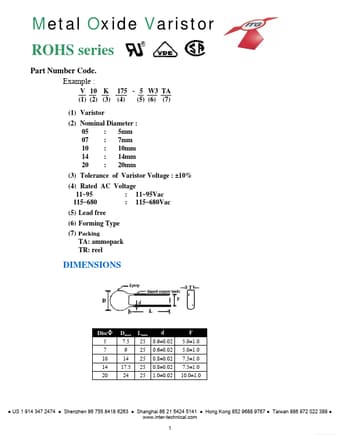

Metal Oxide Varistor ROHS series Part Number Code. Example : V 10 K (1) (2) (3) (1) Varistor (2) Nominal Diameter : 05 : 5mm 07 : 7mm 10 : 10mm 14 : 14mm 20 : 20mm (3) Tolerance of Varistor Voltage : ±10% (4) Rated AC Voltage 11~95 : 11~95Vac 115~680 : 115~680Vac (5) Lead free (6) Forming Type (7) Packing TA: ammopack TR: reel 175 - 5 W3 TA (4) (5) (6) (7) DIMENSIONS DiscΦ 5 7 10 14 20 Dmax 7.5 9 14 17.5 24 d Lmin 25 0.6±0.02 25 25 25 25 0.6±0.02 0.8±0.02 0.8±0.02 1.0±0.02 F 5.0±1.0 5.0±1.0.

V10K350-5 Features

V10K350-5 Datasheet (146.27 KB)
