MS3475L8-xxx - Series 2 Connectors PV

This page provides the datasheet information for the MS3475L8-xxx, a member of the MS3475A10-xxx Series 2 Connectors PV family.

Description

Narrow Flange Receptacle Cable Connecting Receptacle Narrow Flange Receptacle Jam Nut Receptacle Straight Plug Wide Flange Receptacle Straight Plug, RFI Shielded Narrow Flange Receptacle Wide Flange Receptacle Jam Nut Receptacle Straight Plug NAS1599 NAS1650,NAS1699 NAS1651,NAS1700 NAS1652,NAS1701

Features

  • a stamped metal retaining clip captivated by molded-in shoulders of each contact cavity in the insulator. A rear-inserted plastic tool expands the tines beyond the contact shoulder, releasing the contact. Polarized Backshells - Interlocking teeth on the front of the backshell and rear portion of the shell allow endbells to be positioned as desired, eliminating chafing of wire during assembly. Military Specification Cross Reference PV7 and MIL-C-26482 (Series 2) Replacement for MIL-C-26482 (Ser.

📥 Download Datasheet

Datasheet preview – MS3475L8-xxx

Datasheet Details

Part number MS3475L8-xxx
Manufacturer ITT Industries
File Size 559.68 KB
Description Series 2 Connectors PV
Datasheet download datasheet MS3475L8-xxx Datasheet
Additional preview pages of the MS3475L8-xxx datasheet.

📁 Similar Datasheet

  • MS3470 - CONNECTOR (AEC)
  • MS3470 - Wall Mounting Receptacle (ETC)
  • MS3472 - Wall Mounting Receptacle (ETC)
  • MS3416L464S-07 - 32Mb SDRAM DIMM (Macrotron Systems)
  • MS3416L464S-08 - 32Mb SDRAM DIMM (Macrotron Systems)
  • MS345 - 3 AMP SCHOTTKY RECTIFIER (Microsemi Corporation)
  • MS3450 - MIL-DTL-5015 Rear Release Crimp (ETC)
  • MS3450 - WALL MOUNT RECEPTACLE (AEC)
  • MS3450 - Crimp Rear Release (Amphenol)
  • MS3456 - PLUG (ETC)
Other Datasheets by ITT Industries

Full PDF Text Transcription

Click to expand full text

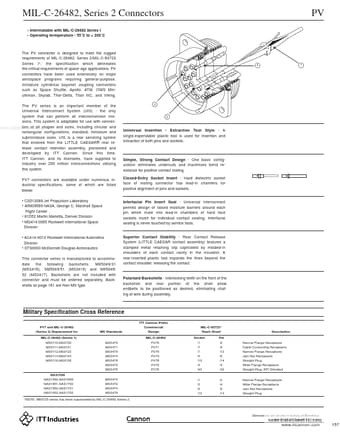

MIL-C-26482, Series 2 Connectors • Intermatable with MIL-C-26482 Series I • Operating termperature - 55˚C to + 200˚C PV The PV connector is designed to meet the rugged requirements of MIL-C-26482, Series 2/MIL-C-83723 Series I*, the specification which delineates the critical requirements of space-age applications. PV connectors have been used extensively on major aerospace programs requiring general-purpose, miniature cylindrical bayonet coupling connectors such as Space Shuttle, Apollo, ATM, OWS Minuteman, Skylab, Thor-Delta, Titan IIIC, and Viking. The PV series is an important member of the Universal Interconnect System (UIS) - the only system that can perform all interconnection missions.
