TST02RA00, TST02PA00 - Cannon Trident Connector System

ITT

TST02RA00 Datasheet Preview — This datasheet PDF includes multiple part numbers: TST02RA00, TST02PA00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TST02RA00, TST02PA00
Manufacturer	ITT
File Size	524.19 KB
Description	Cannon Trident Connector System
Datasheet	TST02PA00_ITT.pdf
Note	This datasheet PDF includes multiple part numbers: TST02RA00, TST02PA00. Please refer to the document for exact specifications by model.

TST02RA00 Product details

Description

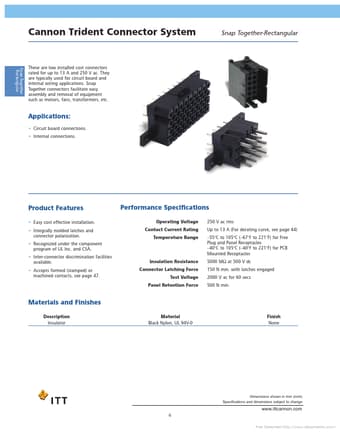

Insulator Material Black Nylon, UL 94V-0 Finish None Dimensions shown in mm (inch) Specifications and dimensions subject to change www.ittcannon.com 6 Free Datasheet http://www.datasheet4u.com/ Cannon Trident Connector System Snap Together-Rectangular 2 Way Plug Receptacle 3 Way Plug Receptacle 4 Way Plug Receptacle 6 Way Plug Receptacle 12 Way Plug Receptacle 24 Way Plug Receptacle 36 Way Plug Receptacle www.ittcannon.com Dimensions shown in mm (inch) Specifications and dimensions

Features

Easy cost effective installation.
Integrally molded latches and connector polarization.
Recognized under the component program of UL Inc. and CSA.
Inter-connector discrimination facilities available.
Accepts formed (stamped) or machined contacts, see page 47. Performance Specifications Operating Voltage Contact Current Rating Temperature Range 250 V ac rms Up to 13 A (For derating curve, see page 44).
55°C to 105°C (.
67°F to 221°.
