TST03AH00

Cannon Trident Connector System

ITT

TST03AH00 Features

* Easy cost effective installation.

* Integrally molded latches and connector polarization.

* Recognized under the component program of UL Inc. and CSA.

* Inter-connector discrimination facilities available.

* Accepts formed (stamped) or machined contacts, see

TST03AH00 General Description

Insulator Material Black Nylon, UL 94V-0 Finish None Dimensions shown in mm (inch) Specifications and dimensions subject to change www.ittcannon.com 6 Free Datasheet http://www.datasheet4u.com/ Cannon Trident Connector System Snap Together-Rectangular 2 Way Plug Receptacle 3 Way Plug Receptac.

TST03AH00 Datasheet (524.19 KB)

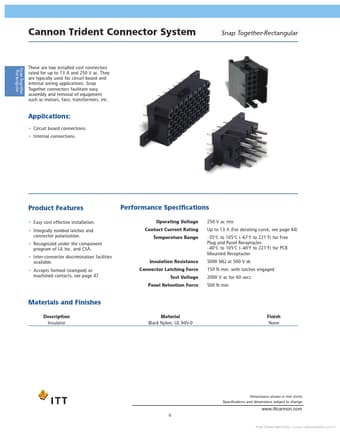

TST03AH00 Datasheet Preview — Preview of TST03AH00 PDF

Datasheet Details

Part number:

TST03AH00

Manufacturer:

ITT

File Size:

524.19 KB

Description:

Cannon trident connector system.
Cannon Trident Connector System Snap Together-Rectangular These are low installed cost connectors rated for up to 13 A and 250 V ac. They are typica.
