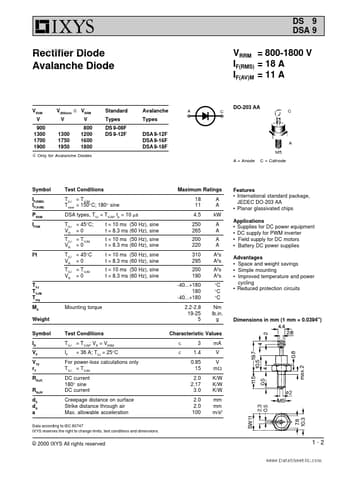

* International standard package, JEDEC DO-203 AA Planar glassivated chips q q Applications Supplies for DC power equipment DC supply for PWM inverter Field supply for DC motors Battery DC power supplies q q q q I2t TVJ = 45°C VR = 0 TVJ = TVJM VR = 0 q q q TVJ TVJM Tstg Md Weight Symbol IR VF VT
DSA9
IXYS Corporation
78.52 KB
Rectifier diode avalanche diode.
DS 9 DSA 9
www.DataSheet4U.com Rectifier Diode Avalanche Diode
VRRM = 800-1800 V IF(RMS) = 18 A IF(AV)M = 11 A
VRSM V 900 1300 1700 1900
V(BR)minÿx.
