DSA90C200HR Schottky Diode

DSA90C200HR Description

Schottky Diode High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSA90C200HR 1 2 3 DSA90C200HR VRRM I FAV VF .
D = Diode S = Schottky Diode A = low VF 90 = Current Rating [A] C = Common Cathode 200 = Reverse Voltage [V] HR = ISO247 (3) Ordering Standard Order.

DSA90C200HR Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSA90C200HR Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: ISO247
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Backside: DCB ceram

📥 Download Datasheet

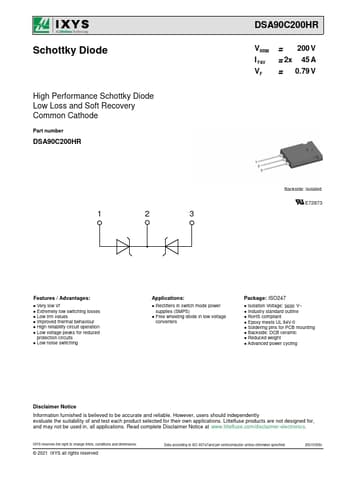

Preview of DSA90C200HR PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSA90C200HR
Manufacturer
IXYS
File Size
396.35 KB
Datasheet
DSA90C200HR-IXYS.pdf
Description
Schottky Diode
