IXDI404SI-16 4 Ampere Dual Low-Side Ultrafast MOSFET Drivers

The IXDN404/IXDI404/IXDF404 is comprised of two 4 Ampere CMOS high speed MOSFET drivers. Each output can source and sink 4A of peak current while producing voltage rise and fall times of less than 15ns to drive the latest IXYS MOSFETs & IGBT's. The input of the driver is compatible with TTL or CMOS .

IXDI404SI-16 Features

* Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes

* Latch-Up Protected Over Entire Operating Range

* High Peak Output Current: 4A Peak

* Wide Operating Range: 4.5V to 25V

* High Capacitive Load Drive Capability: 1800pF in

IXDI404SI-16 Datasheet (246.08 KB)

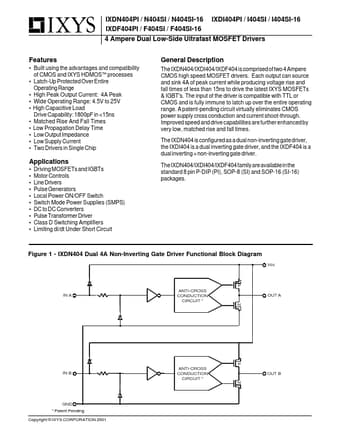

IXDI404SI-16 Datasheet Preview — Preview of IXDI404SI-16 PDF

Datasheet Details

Part number:

IXDI404SI-16

Manufacturer:

IXYS Corporation

File Size:

246.08 KB

Description:

4 ampere dual low-side ultrafast mosfet drivers.
