IXDI514 - 14 Ampere Low-Side Ultrafast MOSFET Drivers

IXDI514 Description

Preliminary Technical Information IXDI514 / IXDN514 14 Ampere Low-Side Ultrafast MOSFET Drivers .
The IXDI514 and IXDN514 are high speed high current gate drivers specifically designed to drive the largest IXYS MOSFETs & IGBTs to their minimum swit.

IXDI514 Features

* Built using the advantages and compatibility TM of CMOS and IXYS HDMOS processes
* Latch-Up Protected over entire Operating Range
* High Peak Output Current: 14A Peak
* Wide Operating Range: 4.5V to 30V
* -55°C to +125°C Extended Operating Temperature

IXDI514 Applications

* Driving MOSFETs and IGBTs Motor Controls Line Drivers Pulse Generators Local Power ON/OFF Switch Switch Mode Power Supplies (SMPS) DC to DC Converters Pulse Transformer Driver Class D Switching Amplif

📥 Download Datasheet

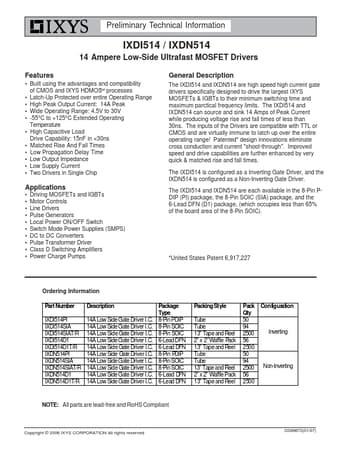

Preview of IXDI514 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXDI514
Manufacturer
IXYS
File Size
497.91 KB
Datasheet
IXDI514-IXYS.pdf
Description
14 Ampere Low-Side Ultrafast MOSFET Drivers
