IXDI402SI-16, IXDN402PI (IXDx402xI) 2 Ampere Dual Low-Side Ultrafast MOSFET Drivers

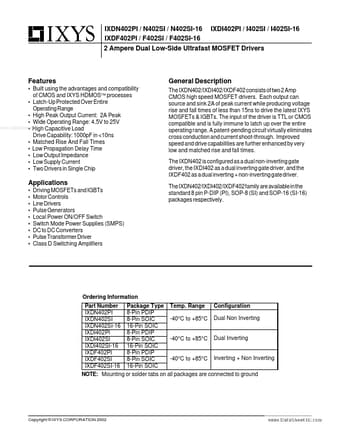

📥 Download Datasheet  Datasheet Preview Page 1

Description

IXDN402PI / N402SI / N402SI-16 IXDF402PI / F402SI / F402SI-16 IXDI402PI / I402SI / I402SI-16 2 Ampere Dual Low-Side Ultrafast MOSFET Drivers Featur.
The IXDN402/IXDI402/IXDF402 consists of two 2 Amp CMOS high speed MOSFET drivers.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IXDI402SI-16, IXDN402PI. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IXDI402SI-16, IXDN402PI
Manufacturer
IXYS Corporation
File Size
260.13 KB
Datasheet
IXDN402PI_IXYSCorporation.pdf
Description
(IXDx402xI) 2 Ampere Dual Low-Side Ultrafast MOSFET Drivers
Note
This datasheet PDF includes multiple part numbers: IXDI402SI-16, IXDN402PI.
Please refer to the document for exact specifications by model.

Features

* Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes
* Latch-Up Protected Over Entire Operating Range
* High Peak Output Current: 2A Peak
* Wide Operating Range: 4.5V to 25V www. DataSheet4U. com
* High Capacitive Load Drive Capabili

Applications

* Driving MOSFETs and IGBTs Motor Controls Line Drivers Pulse Generators Local Power ON/OFF Switch Switch Mode Power Supplies (SMPS) DC to DC Converters Pulse Transformer Driver Class D Switching Amplifiers Orde
