MCD200 THYRISTOR SCR DOUBLER MODULE

www.DataSheet4U.com MCC 200 MCD 200 Thyristor Modules ITRMS = 2x340 A ITAVM = 2x196 A VRRM = 1400-1800 V 6 7 5 4 VRSM VDSM V VRRM VDRM V Type MCC 3 6 7 1 5 4 2 1 3 2 1500 1400 MCC 200-14io1 MCD 200-14io1 1700 1600 MCC 200-16io1 MCD 200-16io1 1900 1800 MCC 200-18io1 MCD 200-18io1 3 1 5 4 2 MCD Symbol ITRMS / IFRMS ITAVM / IFAVM ITSM / IFSM Conditions TVJ = TVJM TC = 90°C; 180° sine TC = 85°C; 180° sine TVJ = 45°C; VR = 0 TVJ = TVJM VR = 0 t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz.

MCD200 Features

* International standard package

* Direct copper bonded Al2O3 -ceramic base plate

* Planar passivated chips

* Isolation voltage 3600 V~

* UL registered, E 72873

* Keyed gate/cathode twin pins Applications

* Motor control

* Power convert

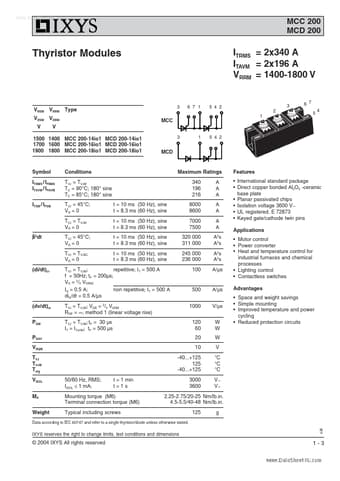

MCD200 Datasheet (103.45 KB)

MCD200 Datasheet Preview — Preview of MCD200 PDF

Datasheet Details

Part number:

MCD200

Manufacturer:

IXYS Corporation

File Size:

103.45 KB

Description:

Thyristor scr doubler module.
