MCD220 Thyristor Modules Thyristor/Diode Modules

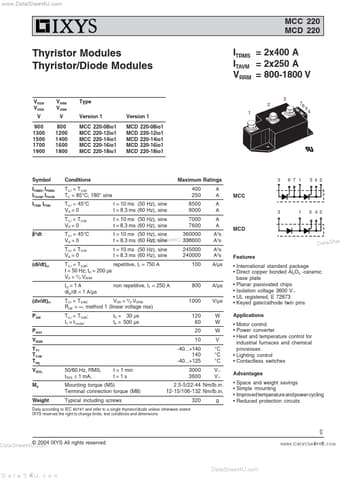

www.DataSheet4U.com MCC 220 MCD 220 Thyristor Modules Thyristor/Diode Modules ITRMS = 2x400 A ITAVM = 2x250 A VRRM = 800-1800 V 3 2 76 1 5 4 VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Type Version 1 MCC MCC MCC MCC MCC 220-08io1 220-12io1 220-14io1 220-16io1 220-18io1 Version 1 MCD MCD MCD MCD MCD 220-08io1 220-12io1 220-14io1 220-16io1 220-18io1 Symbol ITRMS, IFRMS ITAVM, IFAVM ITSM, IFSM Conditions TVJ = TVJM TC = 85°C; 180° sine TVJ = 45°C VR = 0 TVJ = TVJ.

MCD220 Features

* International standard package

* Direct copper bonded Al2O3 -ceramic base plate

* Planar passivated chips

* Isolation voltage 3600 V~

* UL registered, E 72873

* Keyed gate/cathode twin pins Applications

* Motor control

* Power convert

MCD220 Datasheet (315.53 KB)

MCD220 Datasheet Preview — Preview of MCD220 PDF

Datasheet Details

Part number:

MCD220

Manufacturer:

IXYS Corporation

File Size:

315.53 KB

Description:

Thyristor modules thyristor/diode modules.
