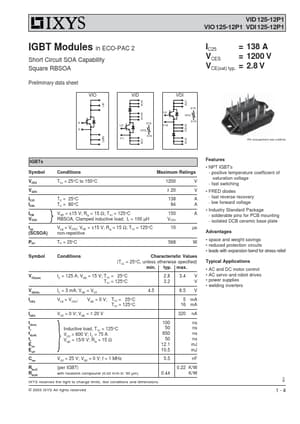

datasheet Preview Page 1 from Datasheet4u.com

VID125-12P1 IGBT Modules

VID 125-12P1 VIO 125-12P1 VDI 125-12P1 IGBT Modules in ECO-PAC 2 Short Circuit SOA Capability Square RBSOA Preliminary data sheet VIO IJK IC25 = 138.

VID125-12P1_IXYSCorporation.pdf

VID125-12P1 Datasheet Preview — Preview of VID125-12P1 PDF

Datasheet Details

Part number:

VID125-12P1

Manufacturer:

IXYS Corporation

File Size:

112.48 KB

Description:

IGBT Modules

Features

* NPT IGBT's - positive temperature coefficient of saturation voltage - fast switching
* FRED diodes - fast reverse recovery - low forward voltage
* Industry Standard Package - solderable pins for PCB mounting - isolated DCB ceramic base plate Advantages
* space and w

Applications

* AC and DC motor control
* AC servo and robot drives
* power supplies
* welding inverters Characteristic Values (TVJ = 25°C, unless otherwise specified) min. typ. max. 2.8 3.2 4.5 3.4 6.5 5 16 320 100 50 650 50 12.1 10.5 5.5 0.44 V V V mA mA nA ns ns ns ns mJ mJ nF
