VUO55-16NO7 Standard Rectifier Module

IXYS Corporation

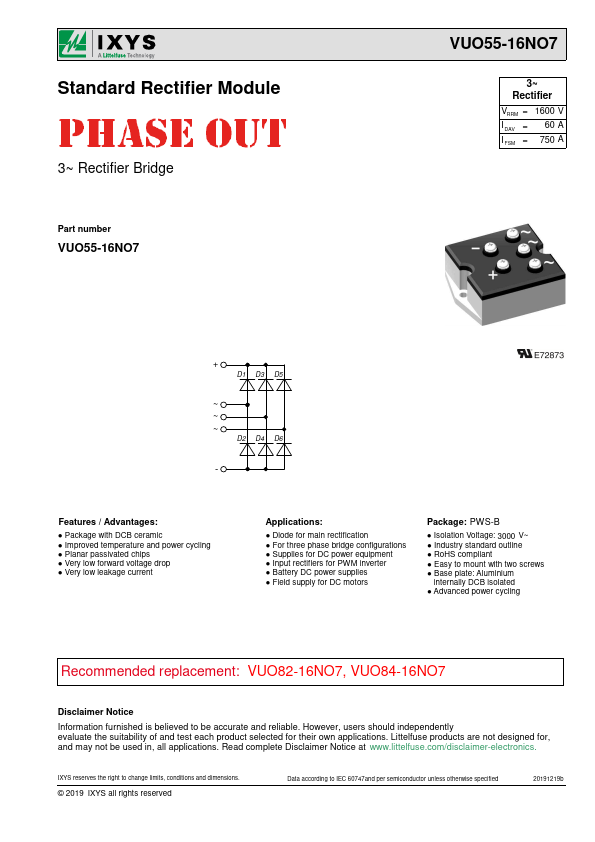

VUO55-16NO7 Description

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO55-16NO7 VUO55-16NO7 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 60 A 750 A + D1 D3 D.

VUO55-16NO7 Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

VUO55-16NO7 Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies

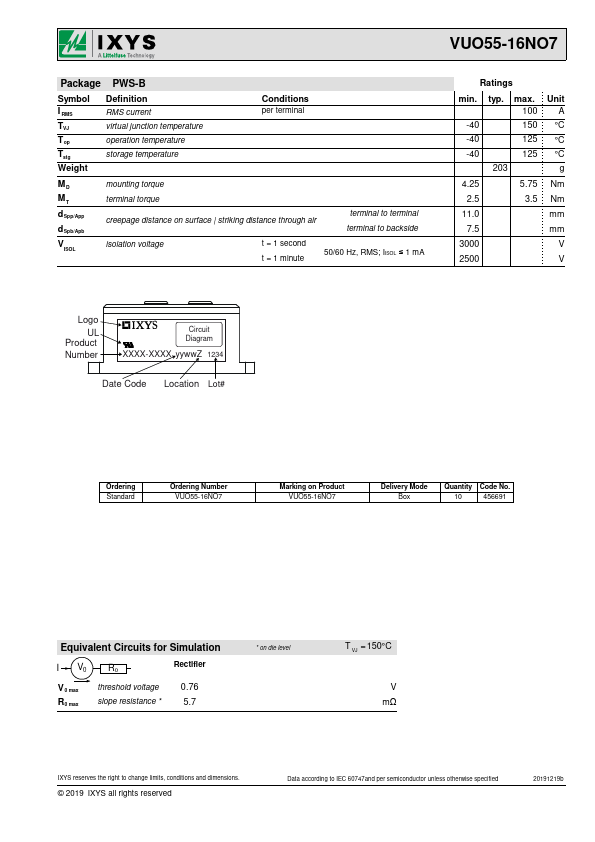

* Field supply for DC motors Package: PWS-B
* Isolation Voltage: 3000 V~
* Industry standard outl

📥 Download Datasheet

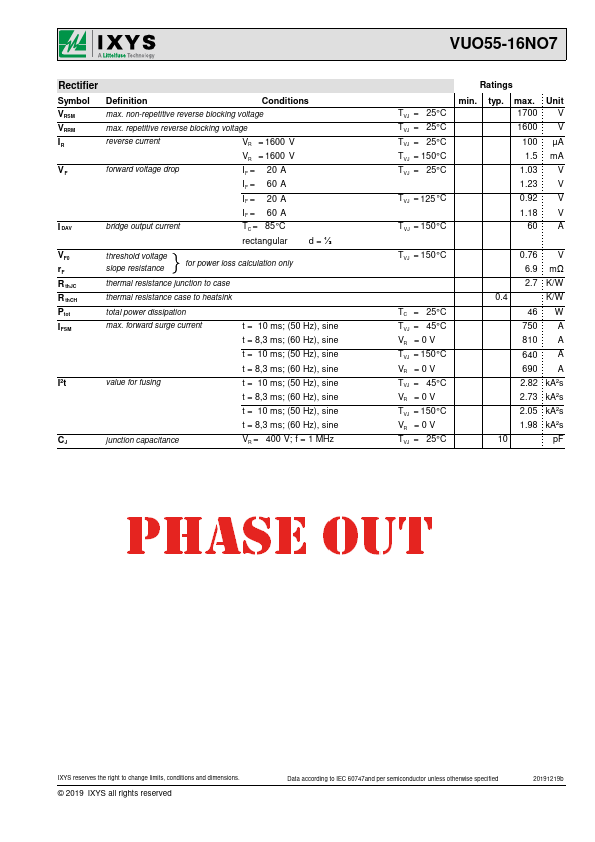

VUO55-16NO7 Datasheet Preview — Preview of VUO55-16NO7 PDF

Datasheet Details

Part number: VUO55-16NO7
Manufacturer: IXYS Corporation
File Size: 214.20 KB
Datasheet: VUO55-16NO7-IXYSCorporation.pdf
Description: Standard Rectifier Module
