CPC5601DTR

Auxiliary Programmable Driver

CPC5601DTR Features

* Meets PC Card (PCMCIA) height requirements

* Zero standby current

* PCB real estate and cost savings

* Can be used with LITELINK II and LITELINK III parts Compliance

* TIA/EIA/IS-968 (FCC part 68)

* UL1950

* UL60950

* EN/IEC 60950-1

CPC5601DTR General Description

CPC5601D 16-pin, 14-lead SOIC, 0.300” wide package, 50/Tube CPC5601DTR 16-pin, 14-lead SOIC, 0.300” wide package, 1000/Reel Figure 1. CPC5601 Block Diagram RING 1 GND 2 INPUT 3 NC 6 Shift Register Drivers 16 LED- 15 LED+ 14 VDDLINE 13 12 11 10 9 8 B1 B2 B3 B4 B5 B6 7 -BR CPC5601 LITELI.

CPC5601DTR Datasheet (380.18 KB)

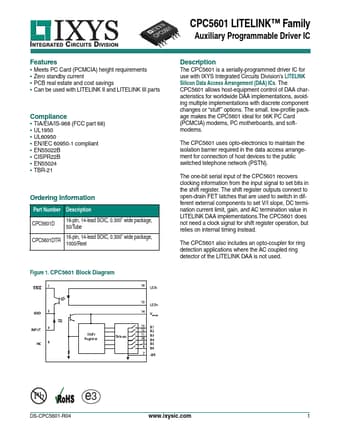

Preview of CPC5601DTR PDF
