DAA10EM1800PZ

Avalanche Rectifier

DAA10EM1800PZ Features

* / Advantages:

* Avalanche rated

* Planar passivated chips

* Very low leakage current

* Very low forward voltage drop

* Improved thermal behaviour Applications:

* Diode for main rectification

* For single and three phase bridge configurations Package: TO-263 (D2Pak-HV)

DAA10EM1800PZ General Description

D = Diode A = Avalanche Rectifier A = (up to 1800V) 10 = Current Rating [A] EM = Single Diode 1800 = Reverse Voltage [V] PZ = TO-263AB (D2Pak) (2HV) Ordering Standard Alternative Ordering Number DAA10EM1800PZ-TRL DAA10EM1800PZ-TUB Marking on Product DAA10EM1800PZ DAA10EM1800PZ Delivery Mode Tape.

DAA10EM1800PZ Datasheet (396.57 KB)

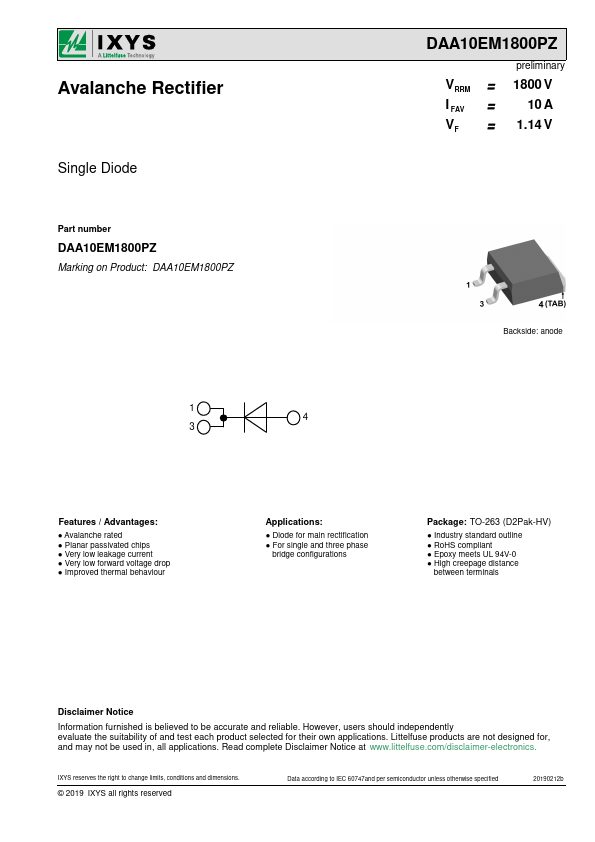

Preview of DAA10EM1800PZ PDF

Datasheet Details

Part number:

DAA10EM1800PZ

Manufacturer:

IXYS

File Size:

396.57 KB

Description:

Avalanche rectifier.
Avalanche Rectifier Single Diode Part number DAA10EM1800PZ Marking on Product: DAA10EM1800PZ 1 4 3 DAA10EM1800PZ preliminary VRRM = 1800 V I FAV .

📁 Related Datasheet

DAA10P1800PZ - Avalanche Rectifier (IXYS)
Avalanche Rectifier Phase leg Part number DAA10P1800PZ Marking on Product: DAA10P1800PZ 1 4 3 DAA10P1800PZ VRRM I FAV VF = 2x 1800 V = 10 A = 1..

DAA01 - Timers Delay on Operate (ETC)
.. Timers Delay on Operate Type DAA01, PAA01 • • • • • • • Time range 0.1 s to 100 h Knob selection of time range Knob adjustable ti.

DAA200X1800NA - Avalanche Rectifier (IXYS)
Avalanche Rectifier Parallel legs Part number DAA200X1800NA 2 3 DAA200X1800NA VRRM I FAV VF = 1800 V = 2x 100 A = 1.21 V Backside: isolated 1 4 F.

DAA200XA1800NA - Avalanche Rectifier (IXYS)
Avalanche Rectifier Anti-parallel legs Part number DAA200XA1800NA 2 1 DAA200XA1800NA VRRM I FAV VF = 1800 V = 2x 100 A = 1.21 V Backside: isolat.

DA-0518S42NA - Detector Log Video Amplifiers (American Accurate Components)
Detector Log Video Amplifiers (DLVA) The content of this specification may change without notification7/01/09 DLVA Detector Log Video Amplifiers (DLV.

DA-3380 - DVD-RAM MASTERING GENERATOR (ETC)
DVD-RAM MASTERING GENERATOR DVD-RAM MASTERING GENERATOR DA-3380 OUTLINE DA-3380 is a signal source for making the master unrecord optical disc that s.

DA-702 - Cassette Receiver Service Manual (Mitsubishi)
.

DA-703 - Cassette Receiver Service Manual (Mitsubishi)
.

TAGS

DAA10EM1800PZ Avalanche Rectifier IXYS

Image Gallery

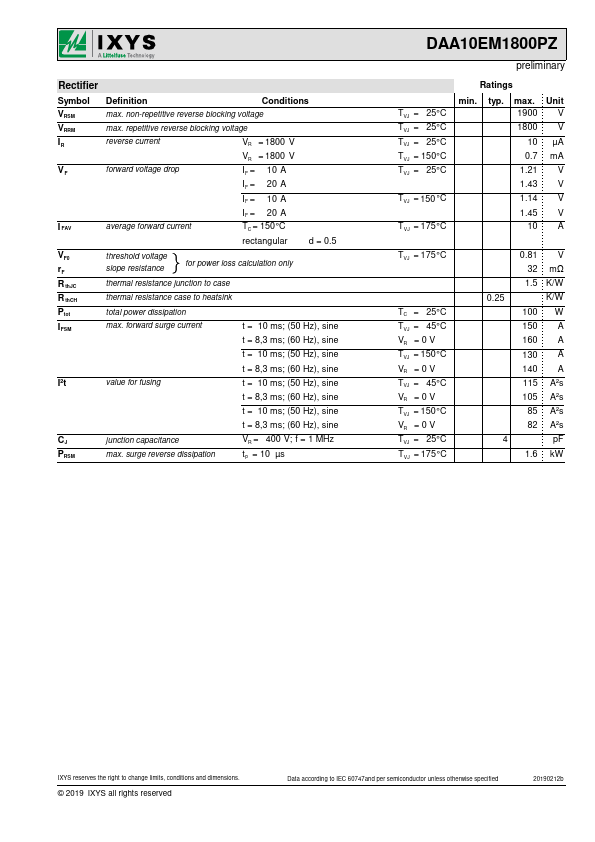

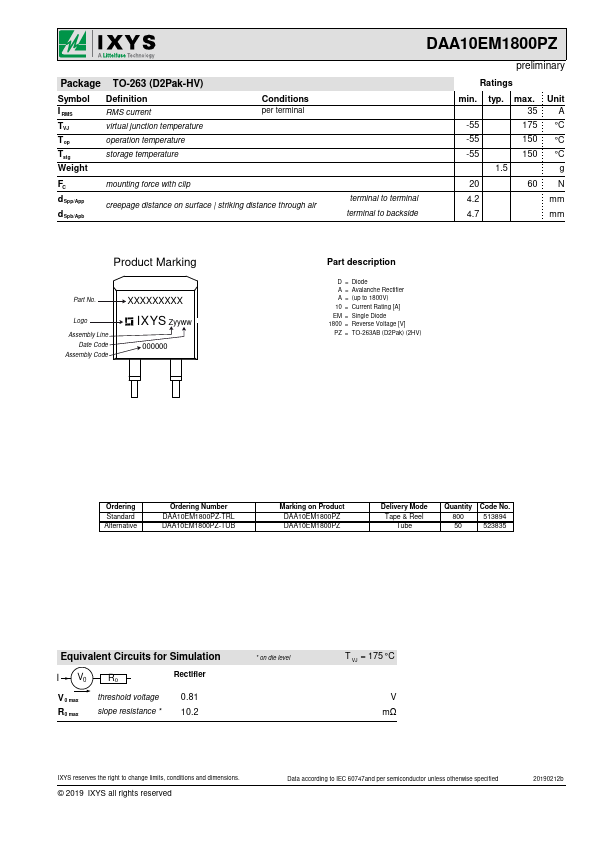

DAA10EM1800PZ Datasheet Preview Page 2 DAA10EM1800PZ Datasheet Preview Page 3
