DAA200X1800NA - Avalanche Rectifier

IXYS

The DAA200X1800NA by IXYS is a Avalanche Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

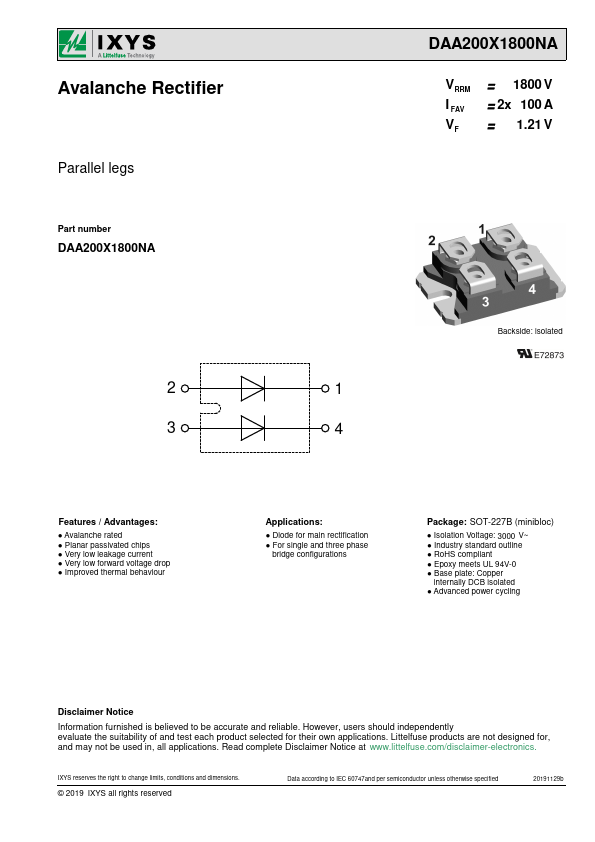

DAA200X1800NA Avalanche Rectifier by IXYS - Datasheet Preview — Official preview page of the **DAA200X1800NA** Avalanche Rectifier datasheet (IXYS).

Datasheet Details

Part number	DAA200X1800NA
Manufacturer	IXYS
File Size	531.95 KB
Description	Avalanche Rectifier
Datasheet	DAA200X1800NA-IXYS.pdf

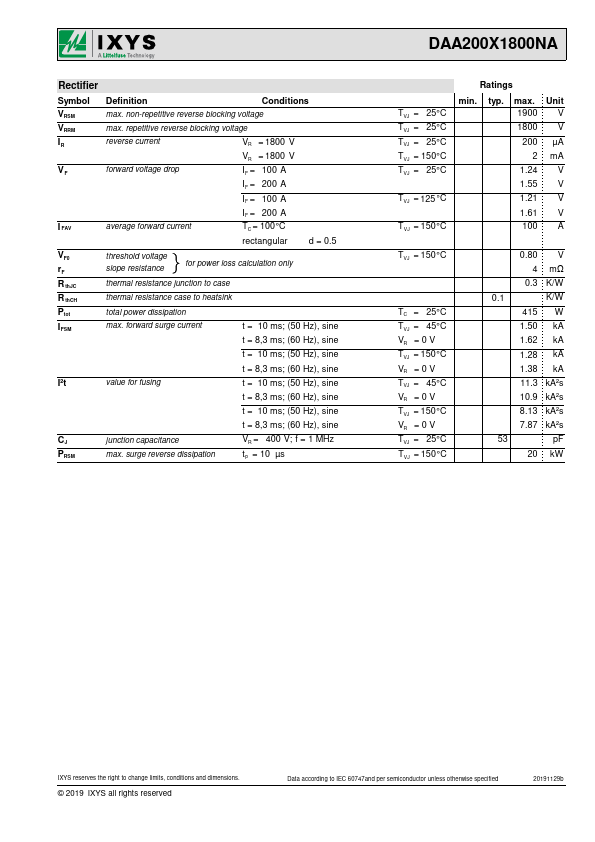

Additional preview pages of the DAA200X1800NA datasheet.

DAA200X1800NA Product details

Description

D = Diode A = Avalanche Rectifier A = (up to 1800V) 200 = Current Rating [A] X = Parallel legs 1800 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DAA200X1800NA Marking on Product DAA200X1800NA Delivery Mode Tube Quantity Code No.10 517654 Similar Part DAA200XA1800NA DMA200X1600NA DMA200XA1600NA Package SOT-227B (minibloc) SOT-227B (minibloc) SOT-227B (minibloc) Voltage class 1800 1600 1600 Equivalent Circuits for Simulation I V0 R0 Rectifier V 0

Features

/ Advantages:.
Avalanche rated.
Planar passivated chips.
Very low leakage current.
Very low forward voltage drop.
Improved thermal behaviour.
