DFE10I600PM - Fast Recovery Epitaxial Diode

Datasheet Summary

Description

Quantity Code No.

Features

  • / Advantages:.
  • Planar passivated chips.
  • Low leakage current.
  • Very short recovery time.
  • Improved thermal behaviour.
  • Very low Irm-values.
  • Very soft recovery behaviour.
  • Avalanche voltage rated for reliable operation.
  • Soft reverse recovery for low EMI/RFI.
  • Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.

📥 Download Datasheet

Datasheet preview – DFE10I600PM

Datasheet Details

Part number DFE10I600PM
Manufacturer IXYS
File Size 184.59 KB
Description Fast Recovery Epitaxial Diode
Datasheet download datasheet DFE10I600PM Datasheet

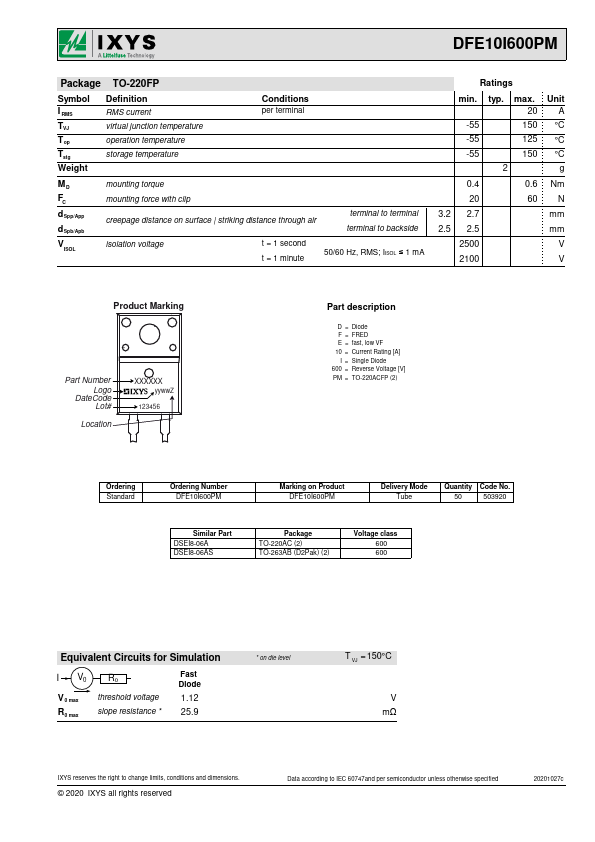

Additional preview pages of the DFE10I600PM datasheet.

📁 Similar Datasheet

Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text

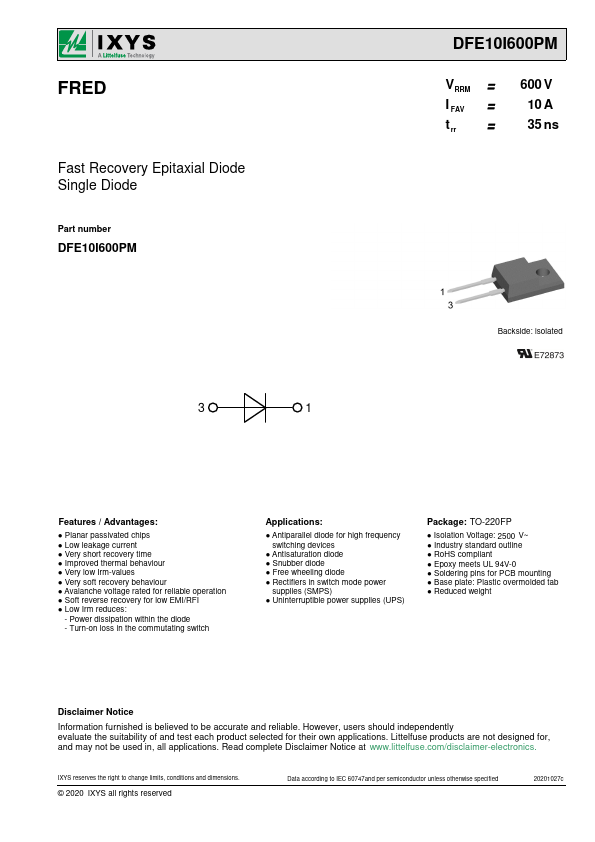

FRED Fast Recovery Epitaxial Diode Single Diode Part number DFE10I600PM 3 1 DFE10I600PM VRRM = I FAV = t rr = 600 V 10 A 35 ns Backside: isolated Features / Advantages: ● Planar passivated chips ● Low leakage current ● Very short recovery time ● Improved thermal behaviour ● Very low Irm-values ● Very soft recovery behaviour ● Avalanche voltage rated for reliable operation ● Soft reverse recovery for low EMI/RFI ● Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch Applications: ● Antiparallel diode for high frequency switching devices ● Antisaturation diode ● Snubber diode ● Free wheeling diode ● Rectifiers in switch mode power supplies (SMPS) ● Uninterruptible power supplies (UPS) Package: TO-220FP ● Isolation Voltage: 2500 V~ ● Indu
