DFE250X600NA - FRED

IXYS

📥 Download Datasheet

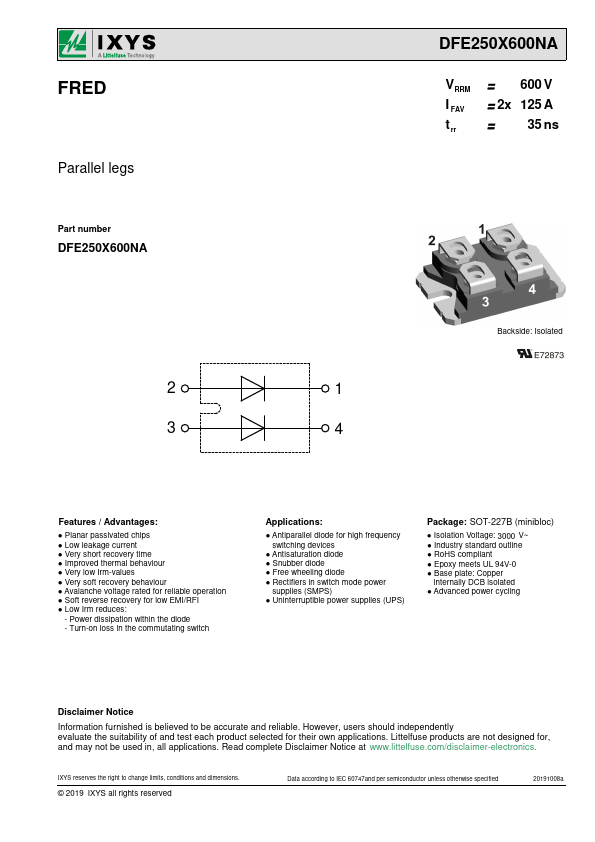

DFE250X600NA Datasheet Preview — Preview of DFE250X600NA PDF

Datasheet Details

Part number	DFE250X600NA
Manufacturer	IXYS
File Size	530.39 KB
Description	FRED
Datasheet	DFE250X600NA-IXYS.pdf

DFE250X600NA Product details

Description

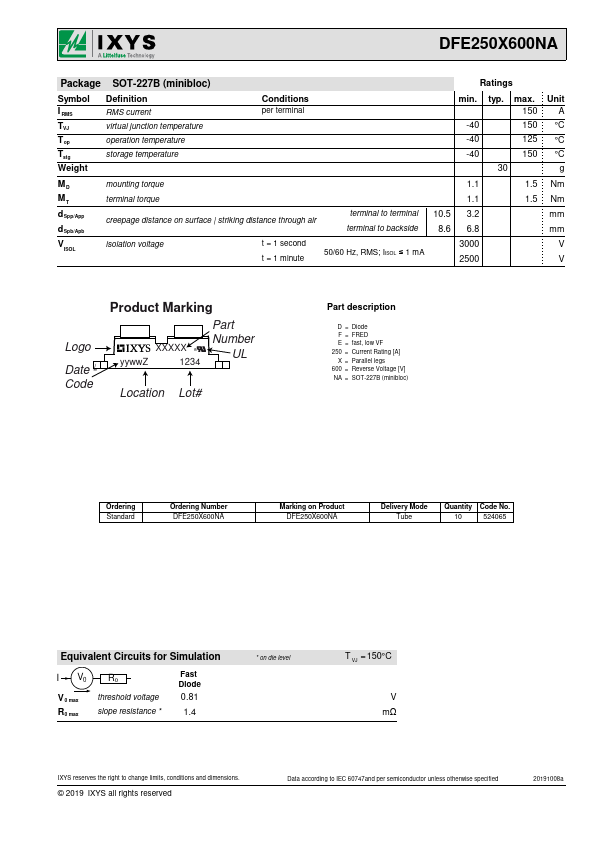

D = Diode F = FRED E = fast, low VF 250 = Current Rating [A] X = Parallel legs 600 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DFE250X600NA Marking on Product DFE250X600NA Delivery Mode Tube Quantity Code No.10 524065 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 0.81 1.4 on die level T VJ = 150°C V mΩ IXYS reserves the right to change limits, conditions and dimensions.© 2

Features

/ Advantages:.
Planar passivated chips.
Low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
