DLA100IM1200TZ Datasheet - IXYS

Low Voltage Standard Rectifier

DLA100IM1200TZ Features

* / Advantages:

* Planar passivated chips

* Very low leakage current

* Very low forward voltage drop

* Improved thermal behaviour

* High commutation robustness

* High surge capability Applications:

* Diode for main rectification

* For single and three phase bridge conf

DLA100IM1200TZ General Description

D = Diode L = Low Voltage Standard Rectifier A = (up to 1200V) 100 = Current Rating [A] IM = Single Diode 1200 = Reverse Voltage [V] TZ = TO-268AA (D3Pak) (2HV) Ordering Standard Ordering Number Marking on Product DLA100IM1200TZ Delivery Mode Quantity Code No. Equivalent Circuits for Simulation.

DLA100IM1200TZ Datasheet (137.09 KB)

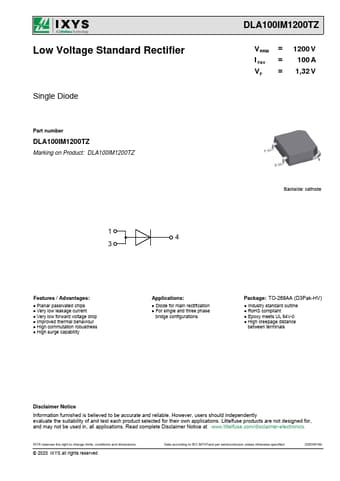

Preview of DLA100IM1200TZ PDF

Datasheet Details

Part number:

DLA100IM1200TZ

Manufacturer:

IXYS

File Size:

137.09 KB

Description:

Low voltage standard rectifier.
Low Voltage Standard Rectifier Single Diode Part number DLA100IM1200TZ Marking on Product: DLA100IM1200TZ 1 4 3 DLA100IM1200TZ VRRM = I FAV = VF .
