* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop
* Improved thermal behaviour Applications:
* Diode for main rectification
* For single and three phase bridge configurations Package: TO-252 (DPak)
* Industry standard out

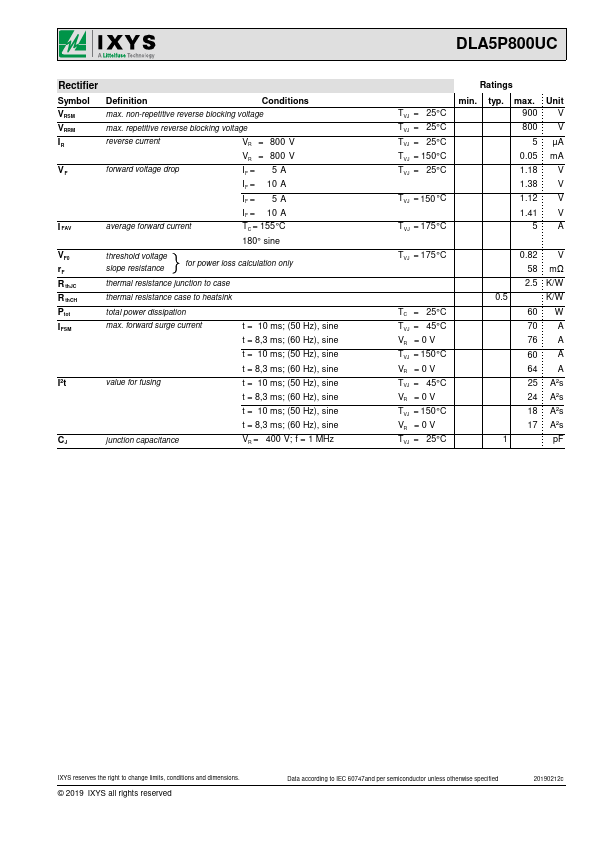

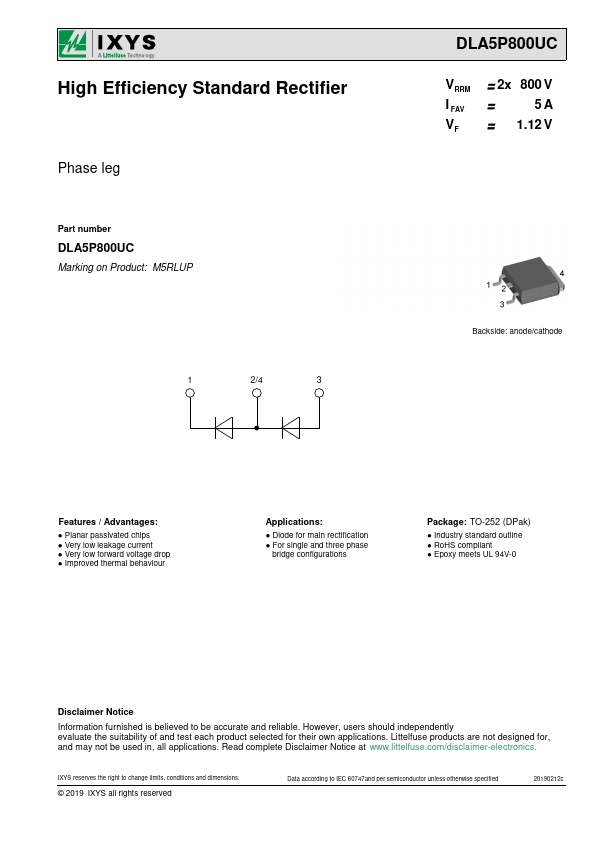

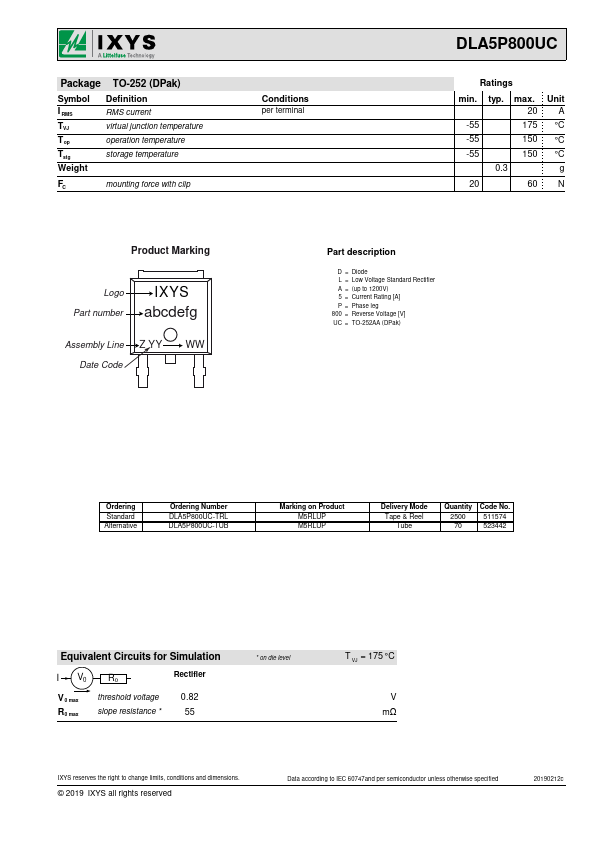

DLA5P800UC Datasheet (126.64 KB)
DLA5P800UC
IXYS
126.64 KB
High efficiency standard rectifier.
High Efficiency Standard Rectifier
Phase leg
Part number
DLA5P800UC
Marking on Product: M5RLUP
1 2/4 3
DLA5P800UC
VRRM I FAV VF
= 2x 800 V = 5A = 1.
