DMA200X1600NA Datasheet - IXYS

Standard Rectifier

DMA200X1600NA Features

* / Advantages:

* Planar passivated chips

* Very low leakage current

* Very low forward voltage drop

* Improved thermal behaviour Applications:

* Diode for main rectification

* For single and three phase bridge configurations Package: SOT-227B (minibloc)

* Isolation Volta

DMA200X1600NA General Description

D = Diode M = Standard Rectifier A = (up to 1800V) 200 = Current Rating [A] X = Parallel legs 1600 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DMA200X1600NA Marking on Product DMA200X1600NA Delivery Mode Tube Quantity Code No. 10 518461 Similar Part DMA20.

DMA200X1600NA Datasheet (539.47 KB)

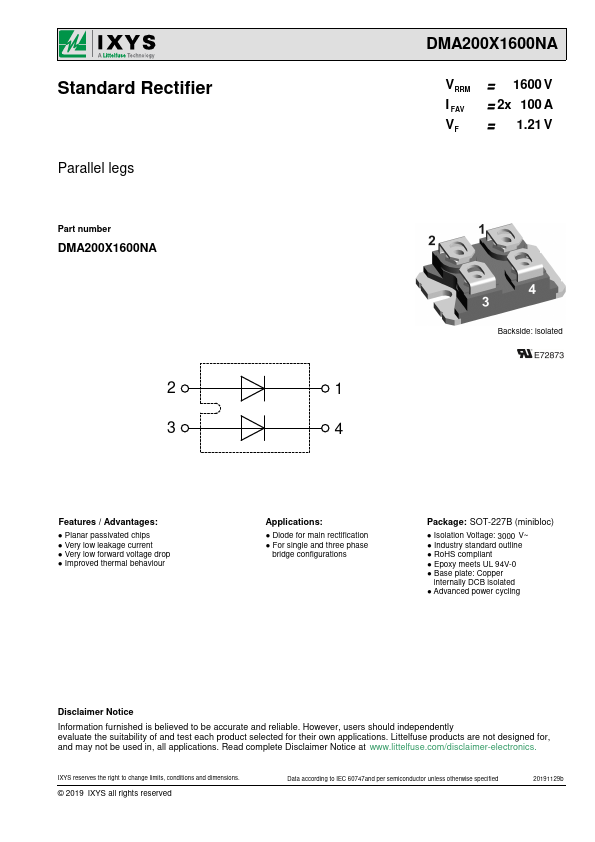

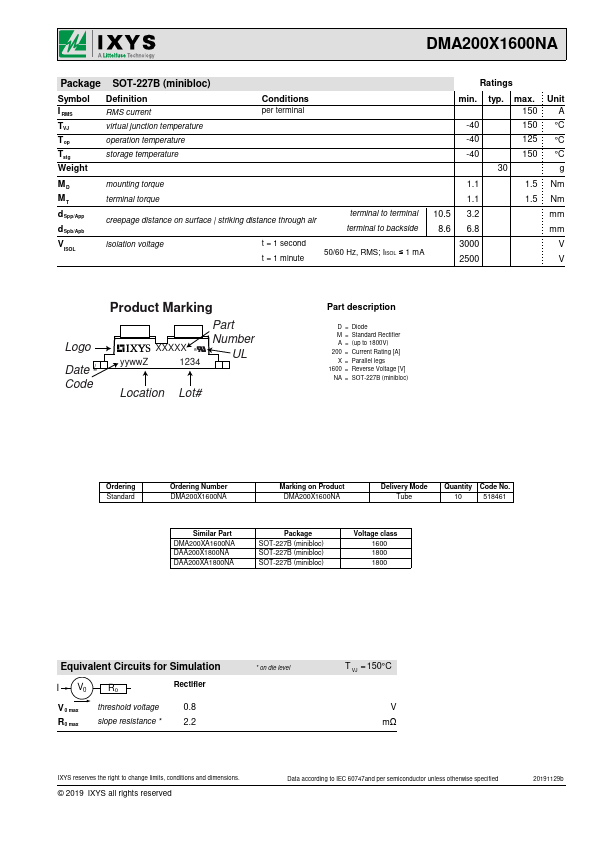

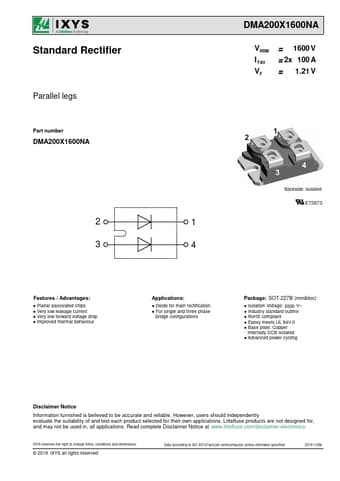

DMA200X1600NA Datasheet Preview — Preview of DMA200X1600NA PDF

Datasheet Details

Part number:

DMA200X1600NA

Manufacturer:

IXYS

File Size:

539.47 KB

Description:

Standard rectifier.
Standard Rectifier Parallel legs Part number DMA200X1600NA 2 3 DMA200X1600NA VRRM I FAV VF = 1600 V = 2x 100 A = 1.21 V Backside: isolated 1 4 Fe.
