DMA200XA1600NA - Standard Rectifier

Datasheet Summary

Description

Quantity Code No.

Features

  • / Advantages:.
  • Planar passivated chips.
  • Very low leakage current.
  • Very low forward voltage drop.
  • Improved thermal behaviour.

📥 Download Datasheet

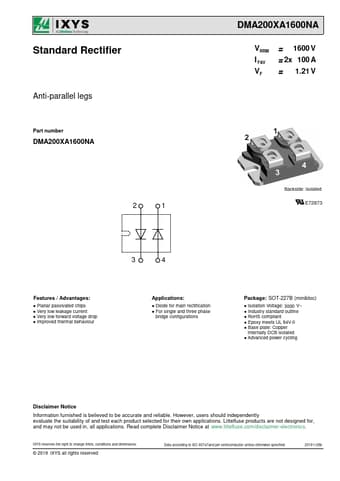

Datasheet preview – DMA200XA1600NA

Datasheet Details

Part number DMA200XA1600NA
Manufacturer IXYS
File Size 539.54 KB
Description Standard Rectifier
Datasheet download datasheet DMA200XA1600NA Datasheet
Additional preview pages of the DMA200XA1600NA datasheet.

📁 Similar Datasheet

  • DMA204A0 - Silicon PNP epitaxial planar type Transistor (Panasonic Semiconductor)
  • DMA206E1 - Silicon PNP epitaxial planar type Transistor (Panasonic Semiconductor)
  • DMA2271 - C/D/D2-MAC Decoder (Micronas)
  • DMA2280 - C/D/D2-MAC Decoder (Micronas)
  • DMA2281 - C/D/D2-MAC Decoder (Micronas)
  • DMA2286 - C/D/D2-MAC Descrambler (Micronas)
  • DMA2610F - Silicon PNP epitaxial planar type Transistor (Panasonic Semiconductor)
  • DMA2610H - Silicon PNP epitaxial planar type Transistor (Panasonic Semiconductor)
  • DMA - Process DMA NPN Small-Signal Transistor (Allegro Microsystems)
  • DMA - ELECTRIC DOUBLE LAYER CAPACITORS (Rubycon)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text
Standard Rectifier Anti-parallel legs Part number DMA200XA1600NA 2 1 DMA200XA1600NA VRRM I FAV VF = 1600 V = 2x 100 A = 1.21 V Backside: isolated 3 4 Features / Advantages: ● Planar passivated chips ● Very low leakage current ● Very low forward voltage drop ● Improved thermal behaviour Applications: ● Diode for main rectification ● For single and three phase bridge configurations Package: SOT-227B (minibloc) ● Isolation Voltage: 3000 V~ ● Industry standard outline ● RoHS compliant ● Epoxy meets UL 94V-0 ● Base plate: Copper internally DCB isolated ● Advanced power cycling Disclaimer Notice Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications.
