DMA50I800HA - Standard Rectifier

📥 Download Datasheet

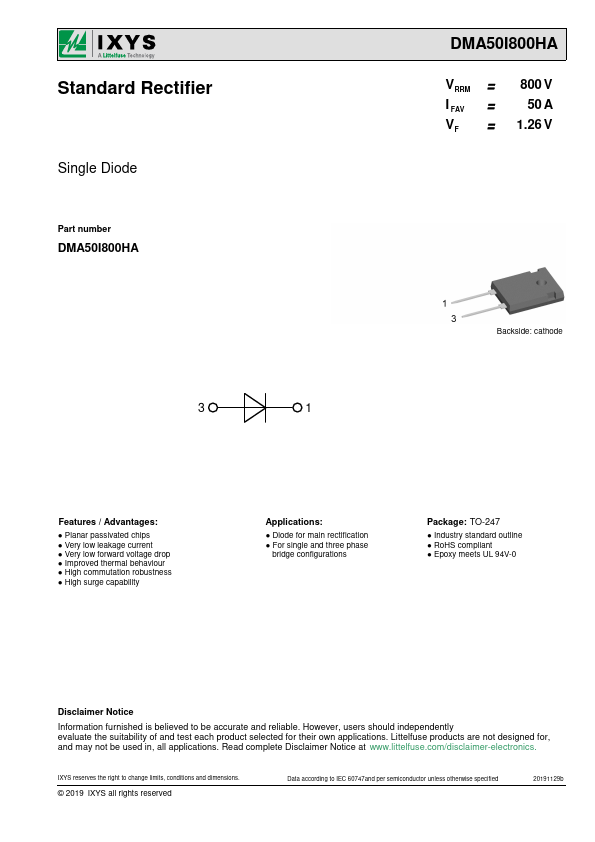

Preview of DMA50I800HA PDF

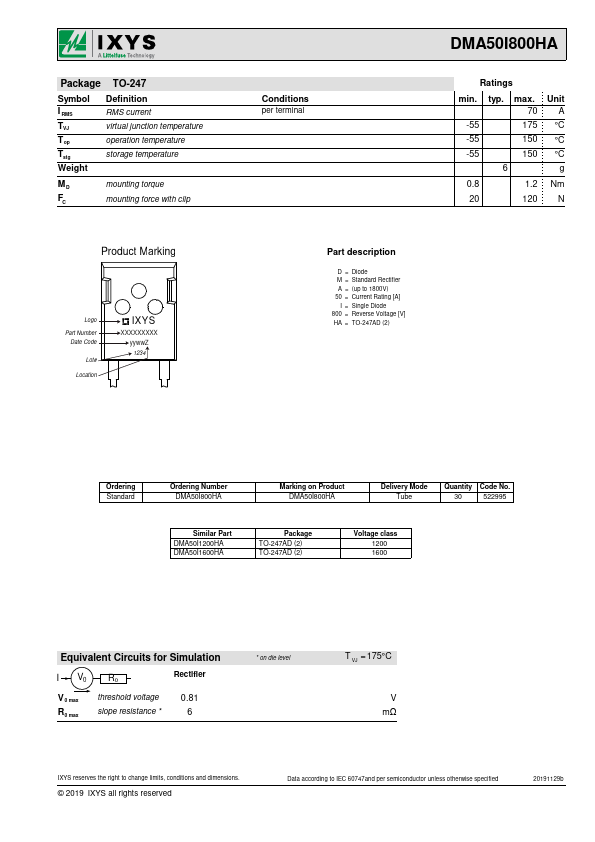

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DMA50I800HA
Manufacturer IXYS
File Size 323.26 KB
Description Standard Rectifier
Datasheet download datasheet DMA50I800HA-IXYS.pdf

DMA50I800HA Product details

Description

D = Diode M = Standard Rectifier A = (up to 1800V) 50 = Current Rating [A] I = Single Diode 800 = Reverse Voltage [V] HA = TO-247AD (2) Ordering Standard Ordering Number DMA50I800HA Marking on Product DMA50I800HA Delivery Mode Tube Quantity Code No.30 522995 Similar Part DMA50I1200HA DMA50I1600HA Package TO-247AD (2) TO-247AD (2) Voltage class 1200 1600 Equivalent Circuits for Simulation I V0 R0 Rectifier V 0 max R0 max threshold voltage slope resistance 0.81 6 on

Features
