DMA80IM1600HB Datasheet - IXYS

Standard Rectifier

DMA80IM1600HB Features

* / Advantages:

* Planar passivated chips

* Very low leakage current

* Very low forward voltage drop

* Improved thermal behaviour

* High commutation robustness

* High surge capability Applications:

* Diode for main rectification

* For single and three phase bridge conf

DMA80IM1600HB General Description

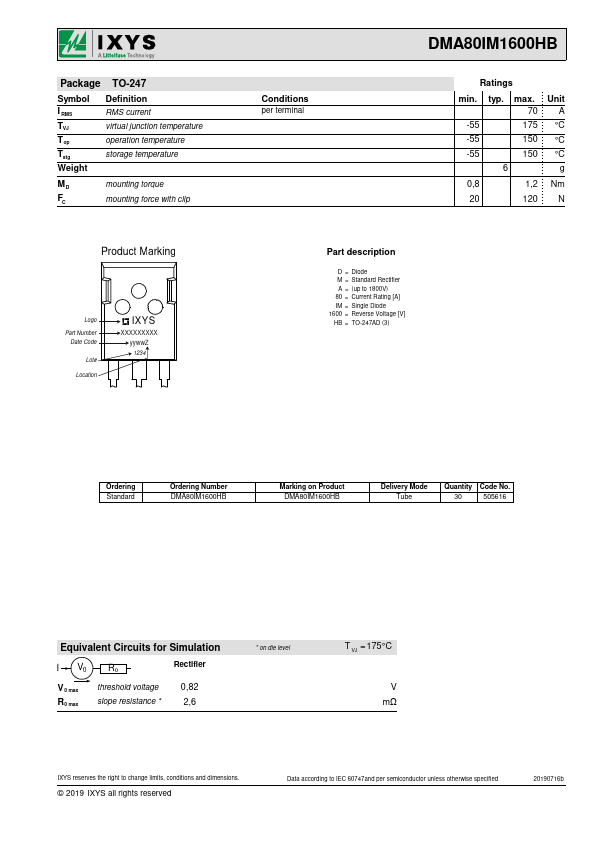

D = Diode M = Standard Rectifier A = (up to 1800V) 80 = Current Rating [A] IM = Single Diode 1600 = Reverse Voltage [V] HB = TO-247AD (3) Ordering Standard Ordering Number DMA80IM1600HB Marking on Product DMA80IM1600HB Delivery Mode Tube Quantity Code No. 30 505616 Equivalent Circuits for Si.

DMA80IM1600HB Datasheet (367.87 KB)

DMA80IM1600HB Datasheet Preview — Preview of DMA80IM1600HB PDF

Datasheet Details

Part number:

DMA80IM1600HB

Manufacturer:

IXYS

File Size:

367.87 KB

Description:

Standard rectifier.

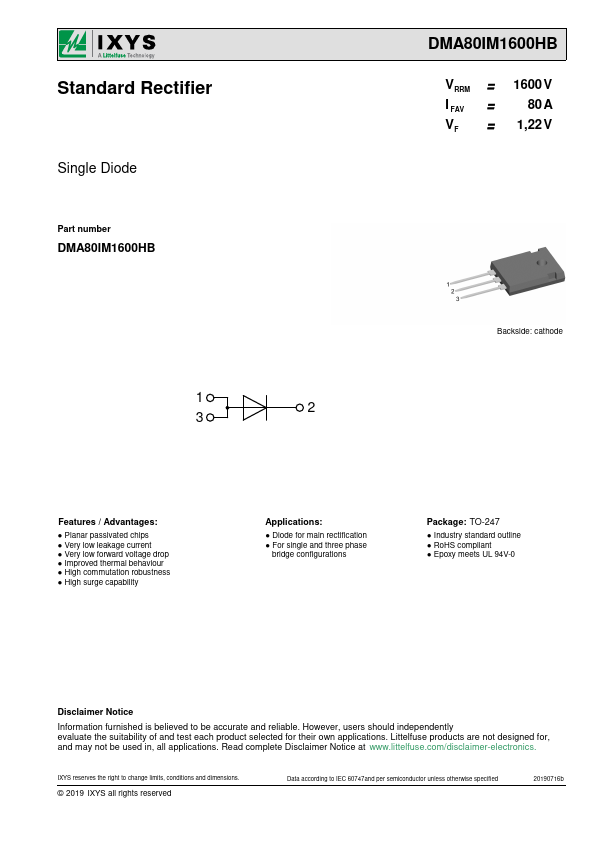

Standard Rectifier Single Diode Part number DMA80IM1600HB 1 3 2 DMA80IM1600HB VRRM = I FAV = VF = 1600 V 80 A 1,22 V Backside: cathode Feat.
