DPG20C300PB - High Performance Fast Recovery Diode

IXYS

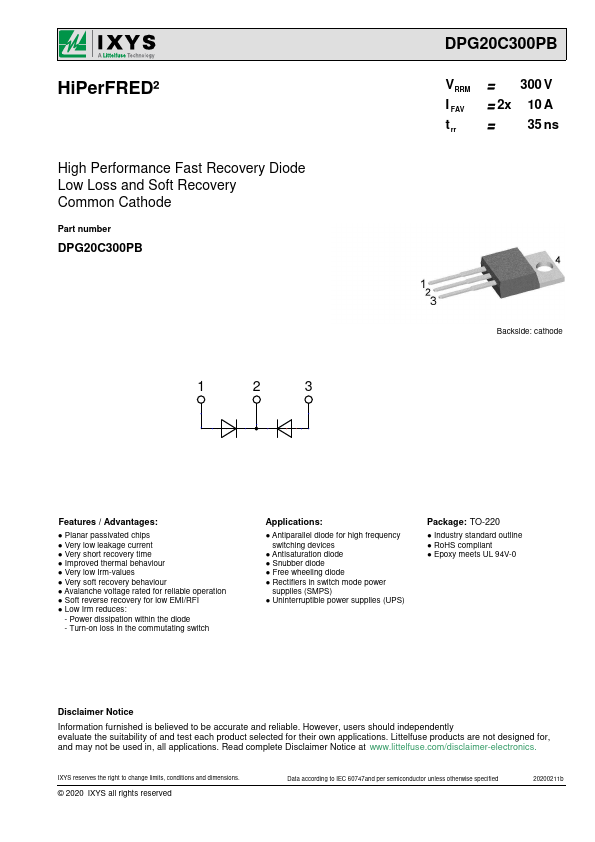

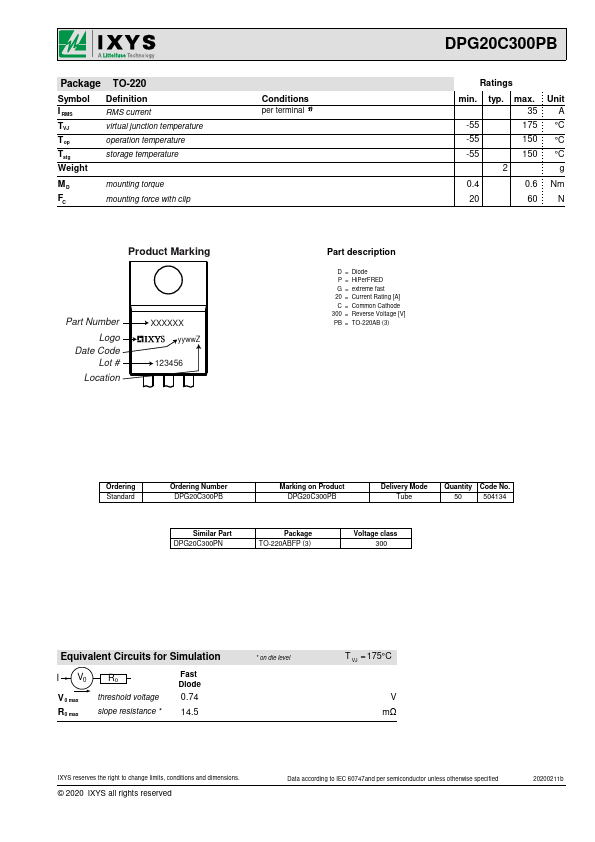

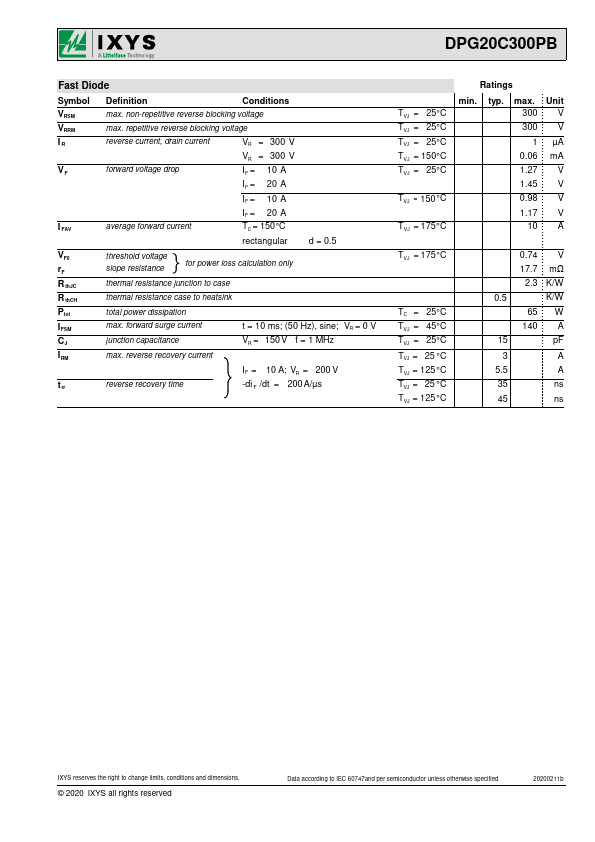

DPG20C300PB Datasheet Preview — Preview of DPG20C300PB PDF

Datasheet Details

Part number	DPG20C300PB
Manufacturer	IXYS
File Size	124.16 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPG20C300PB-IXYS.pdf

DPG20C300PB Product details

Description

D = Diode P = HiPerFRED G = extreme fast 20 = Current Rating [A] C = Common Cathode 300 = Reverse Voltage [V] PB = TO-220AB (3) Ordering Standard Ordering Number DPG20C300PB Marking on Product DPG20C300PB Delivery Mode Tube Quantity Code No.50 504134 Similar Part DPG20C300PN Package TO-220ABFP (3) Voltage class 300 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 0.74 14.5 on die level T VJ = 175°C V mΩ IXYS r

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
