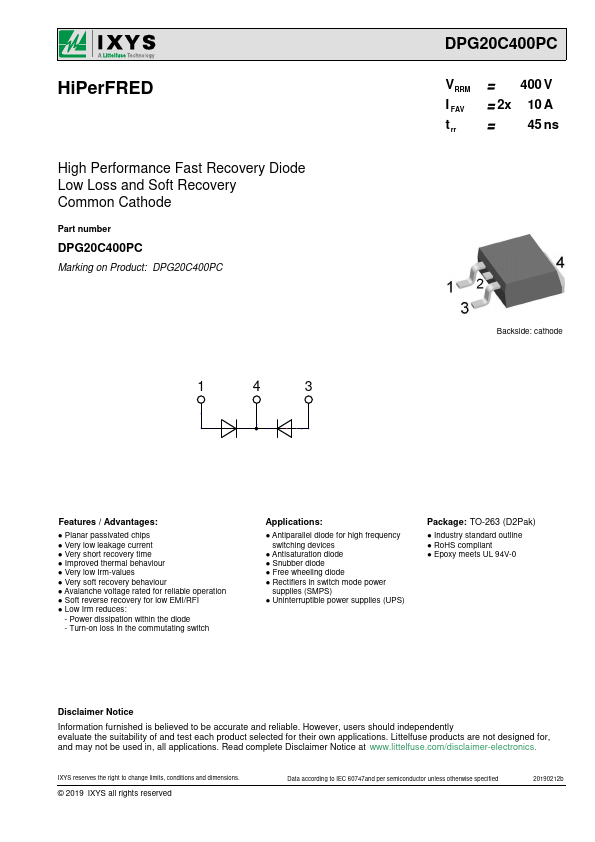

DPG20C400PC - High Performance Fast Recovery Diode

IXYS

DPG20C400PC Datasheet Preview — Preview of DPG20C400PC PDF

Datasheet Details

Part number	DPG20C400PC
Manufacturer	IXYS
File Size	152.90 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPG20C400PC-IXYS.pdf

DPG20C400PC Product details

Description

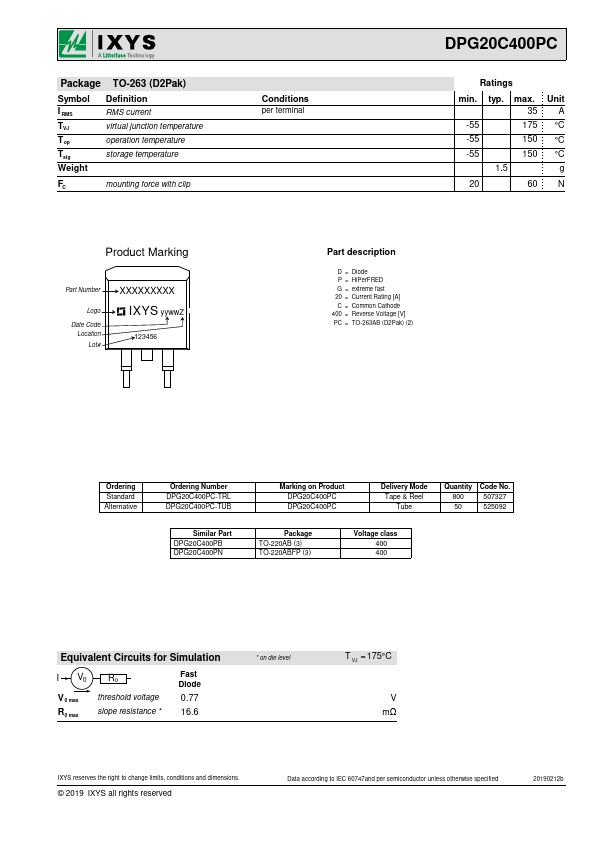

D = Diode P = HiPerFRED G = extreme fast 20 = Current Rating [A] C = Common Cathode 400 = Reverse Voltage [V] PC = TO-263AB (D2Pak) (2) Ordering Standard Alternative Ordering Number DPG20C400PC-TRL DPG20C400PC-TUB Similar Part DPG20C400PB DPG20C400PN Marking on Product DPG20C400PC DPG20C400PC Delivery Mode Tape & Reel Tube Quantity Code No.800 507327 50 525092 Package TO-220AB (3) TO-220ABFP (3) Voltage class 400 400 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max thre

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
