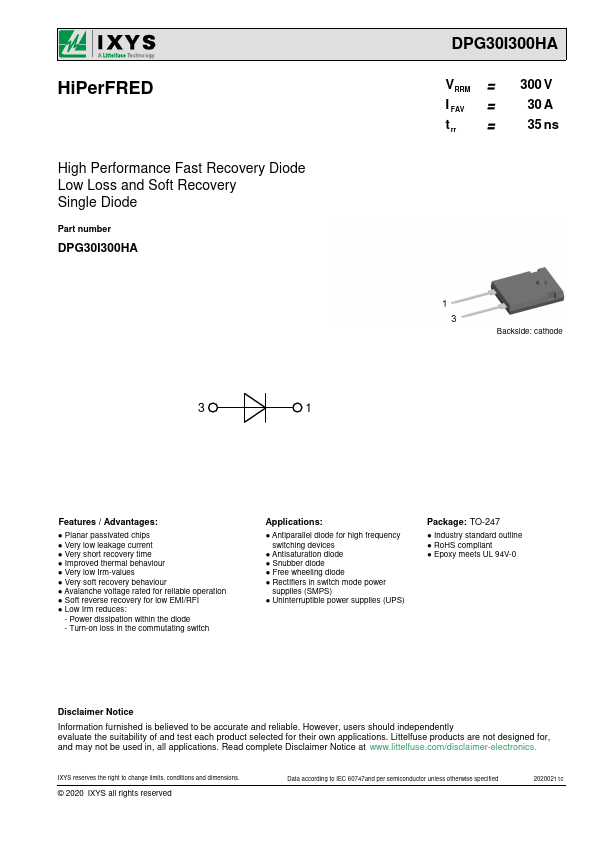

DPG30I300HA - High Performance Fast Recovery Diode

IXYS

DPG30I300HA Datasheet Preview — Preview of DPG30I300HA PDF

Datasheet Details

Part number	DPG30I300HA
Manufacturer	IXYS
File Size	318.73 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPG30I300HA-IXYS.pdf

DPG30I300HA Product details

Description

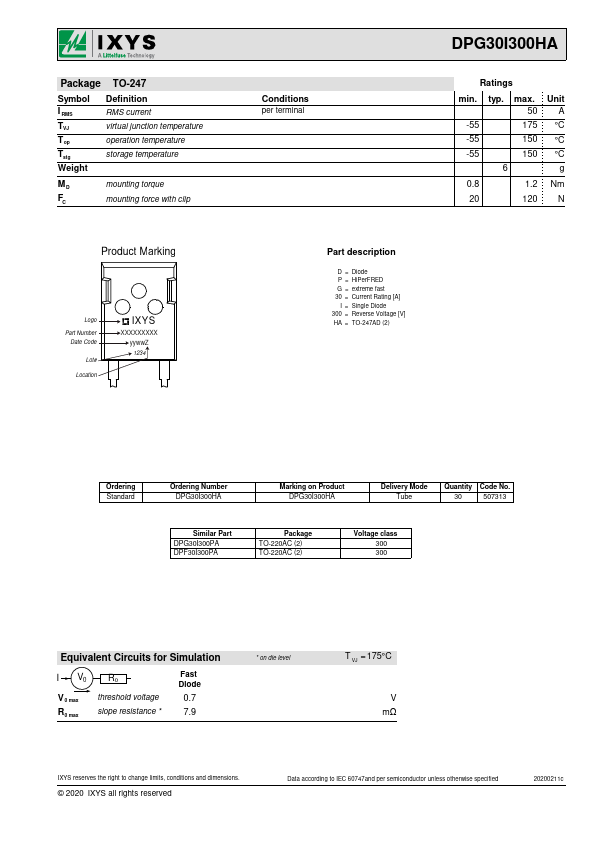

D = Diode P = HiPerFRED G = extreme fast 30 = Current Rating [A] I = Single Diode 300 = Reverse Voltage [V] HA = TO-247AD (2) Ordering Standard Ordering Number DPG30I300HA Marking on Product DPG30I300HA Delivery Mode Tube Quantity Code No.30 507313 Similar Part DPG30I300PA DPF30I300PA Package TO-220AC (2) TO-220AC (2) Voltage class 300 300 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 0.7 7.9 on die level T

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
