DPG30IM300PC - High Performance Fast Recovery Diode

IXYS

DPG30IM300PC Datasheet Preview — Preview of DPG30IM300PC PDF

Datasheet Details

Part number	DPG30IM300PC
Manufacturer	IXYS
File Size	156.43 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPG30IM300PC-IXYS.pdf

DPG30IM300PC Product details

Description

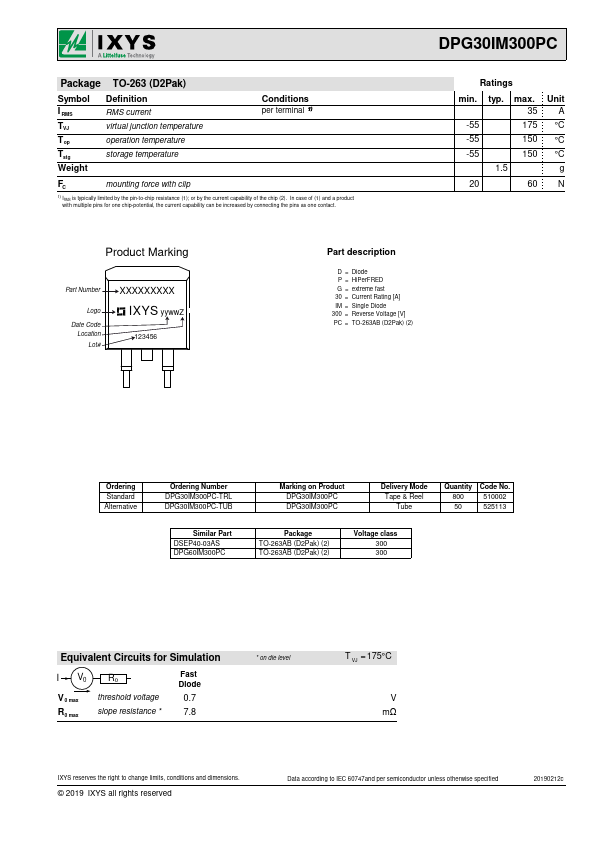

D = Diode P = HiPerFRED G = extreme fast 30 = Current Rating [A] IM = Single Diode 300 = Reverse Voltage [V] PC = TO-263AB (D2Pak) (2) Ordering Standard Alternative Ordering Number DPG30IM300PC-TRL DPG30IM300PC-TUB Similar Part DSEP40-03AS DPG60IM300PC Marking on Product DPG30IM300PC DPG30IM300PC Delivery Mode Tape & Reel Tube Quantity Code No.800 510002 50 525113 Package TO-263AB (D2Pak) (2) TO-263AB (D2Pak) (2) Voltage class 300 300 Equivalent Circuits for Simulation I V0 R0 V

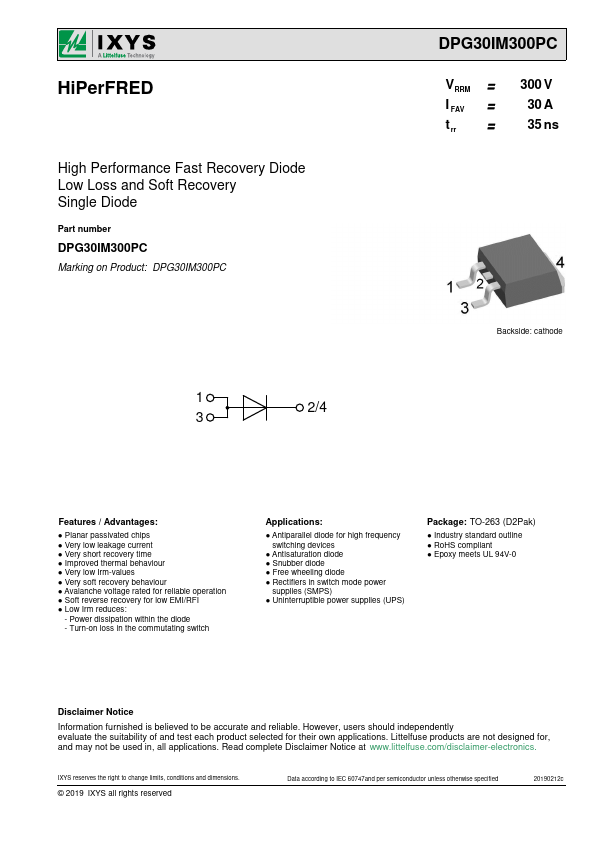

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
