DSA120X150LB

Schottky Diode

DSA120X150LB Features

* / Advantages:

* Very low VF

* Extremely low switching losses

* Low IRM values

* Improved thermal behaviour

* High reliability circuits operation

* Low voltage peaks for reduced protection circuits

* Low noise switching D1 7 8 = n/c 9 D2 A1

DSA120X150LB Datasheet (157.29 KB)

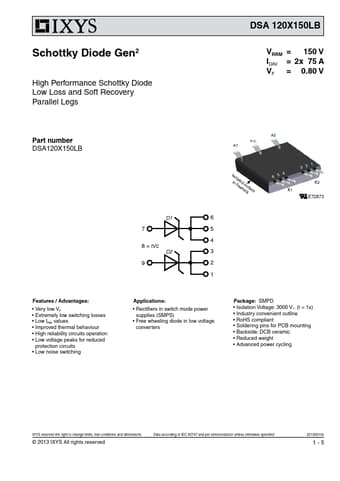

Preview of DSA120X150LB PDF

Datasheet Details

Part number:

DSA120X150LB

Manufacturer:

IXYS

File Size:

157.29 KB

Description:

Schottky diode.
Schottky Diode Gen2 High Performance Schottky Diode Low Loss and Soft Recovery Parallel Legs DSA 120X150LB VRRM = 150 V IDAV = 2x 75 A VF = 0..
