DSB60C60HB - High Performance Schottky Diode

IXYS

DSB60C60HB Datasheet Preview — Preview of DSB60C60HB PDF

Datasheet Details

Part number	DSB60C60HB
Manufacturer	IXYS
File Size	307.56 KB
Description	High Performance Schottky Diode
Datasheet	DSB60C60HB-IXYS.pdf

DSB60C60HB Product details

Description

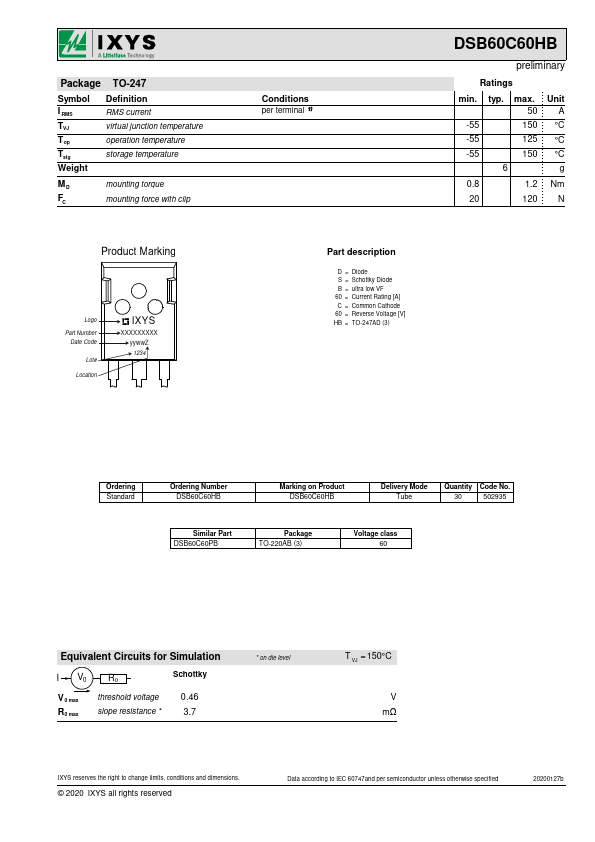

D = Diode S = Schottky Diode B = ultra low VF 60 = Current Rating [A] C = Common Cathode 60 = Reverse Voltage [V] HB = TO-247AD (3) Ordering Standard Ordering Number DSB60C60HB Marking on Product DSB60C60HB Delivery Mode Tube Quantity Code No.30 502935 Similar Part DSB60C60PB Package TO-220AB (3) Voltage class 60 Equivalent Circuits for Simulation I V0 R0 Schottky V 0 max R0 max threshold voltage slope resistance 0.46 3.7 on die level T VJ = 150°C V mΩ IXYS reser

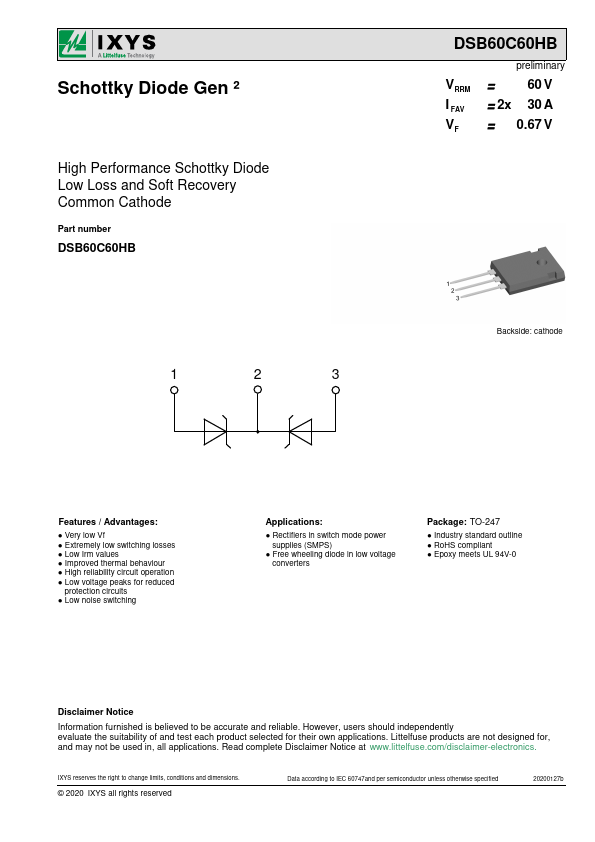

Features

/ Advantages:.
Very low Vf.
Extremely low switching losses.
Low Irm values.
Improved thermal behaviour.
High reliability circuit operation.
Low voltage peaks for reduced protection circuits.
Low noise switching.
