DSI17-08A Datasheet - IXYS

DSI17-08A - Rectifier Diode

Rectifier Diode Avalanche Diode DS 17 DSA 17 DSI 17 DSAI 17 VRRM = 800-1800 V IF(RMS)= 40 A IF(AV)M = 25 A V RSM V V x(BR)minÿ V RRM VV 900 - 800 1300 - 1200 1300 1700 1900 1300 1750 1950 1200 1600 1800 x Only for Avalanche Diodes Anode on stud DS 17-08A DS 17-12A DSA 17-12A DSA 17-16A DSA 17-18A Cathode on stud DSI 17-08A DSI 17-12A DSAI 17-12A DSAI 17-16A DSAI 17-18A DO-203 AA C DS DSA A A DSI DSAI C 10-32UNF A = Anode C = Cathode Symbol IF(RMS) IF(AV)M PRSM I FSM I2t TVJ T.

DSI17-08A Features

* q International standard package, JEDEC DO-203 AA (DO-4) q Planar glassivated chips Applications q Supplies for DC power equipment q DC supply for PWM inverter q Field supply for DC motors q Battery DC power supplies Advantages q Space and weight savings q Simple mounting q Improved temperature and

DSI17-08A-IXYS.pdf

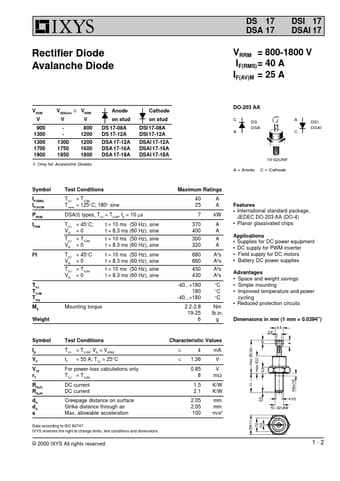

DSI17-08A Datasheet Preview — Preview of DSI17-08A PDF

Datasheet Details

Part number:

DSI17-08A

Manufacturer:

IXYS

File Size:

36.30 KB

Description:

Rectifier diode.
