DSI30-08AS Standard Rectifier

DSI30-08AS Description

Standard Rectifier Single Diode Part number DSI30-08AS Marking on Product: DSI30-08AS 1 3 2/4 DSI30-08AS VRRM = I FAV = VF = 800 V 30 A 1.25 .

DSI30-08AS Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop

DSI30-08AS Applications

* Diode for main rectification
* For single and three phase bridge configurations Package: TO-263 (D2Pak)
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0 Disclaimer Notice Information furnished is believed to be accurate and reliable. However, users should

📥 Download Datasheet

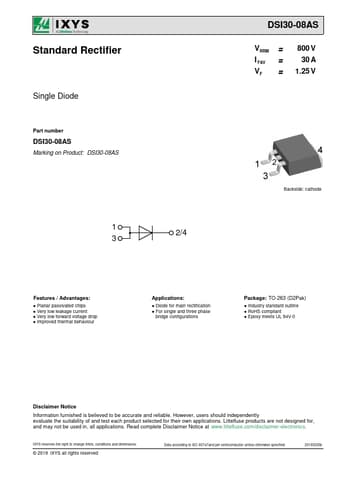

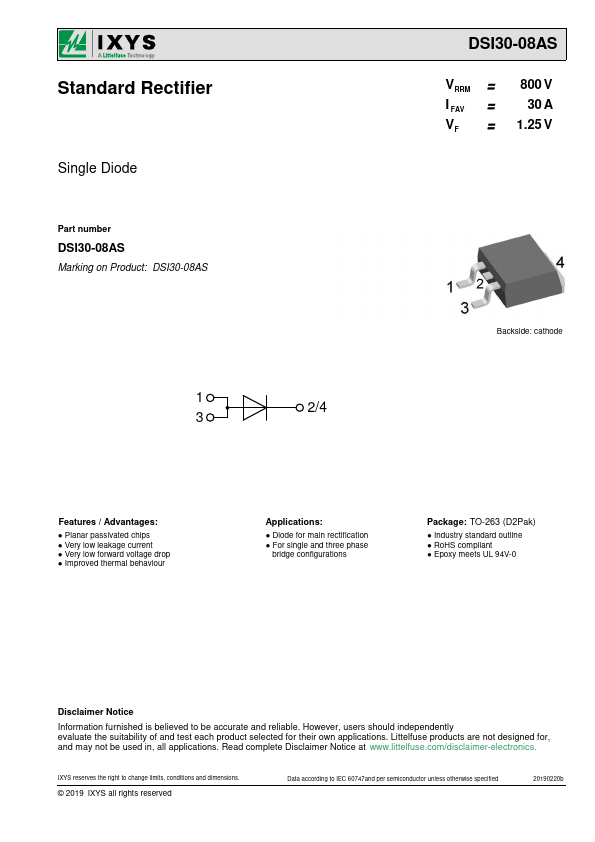

Preview of DSI30-08AS PDF

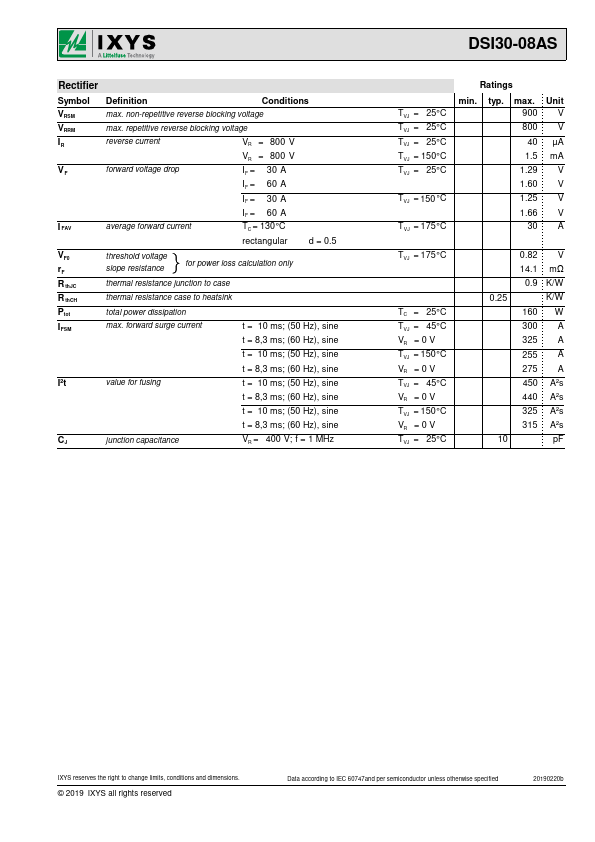

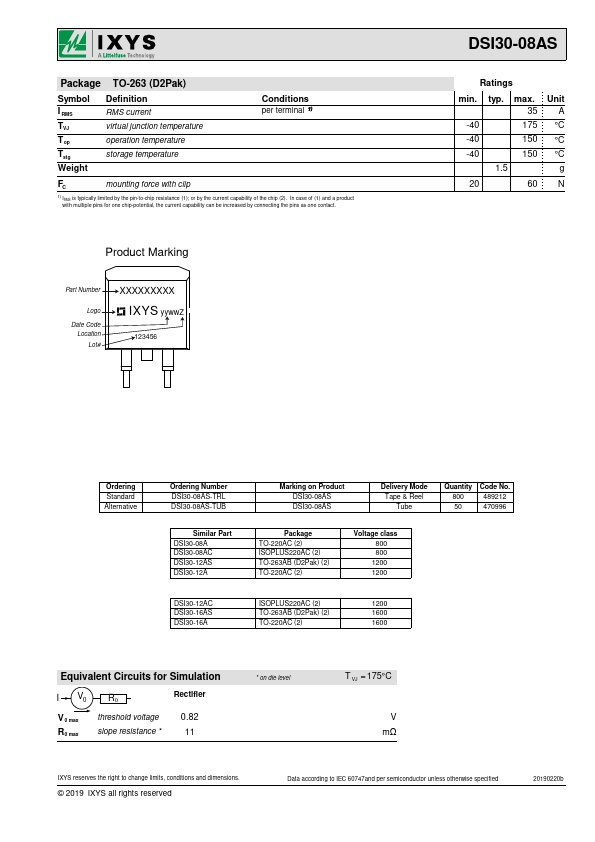

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSI30-08AS
Manufacturer
IXYS
File Size
156.64 KB
Datasheet
DSI30-08AS-IXYS.pdf
Description
Standard Rectifier
