Part number:
DSP8-08A
Manufacturer:
IXYS
File Size:
136.76 KB
Description:
Standard rectifier.

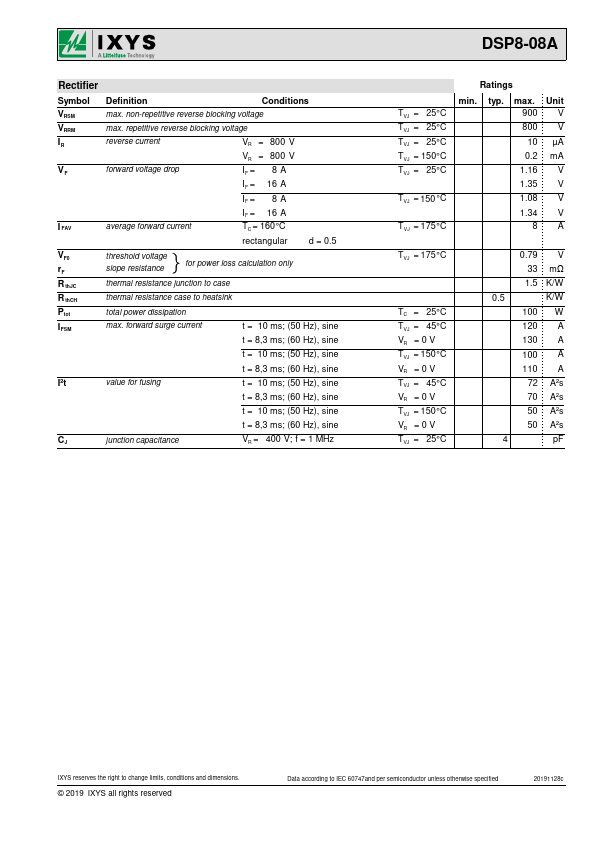

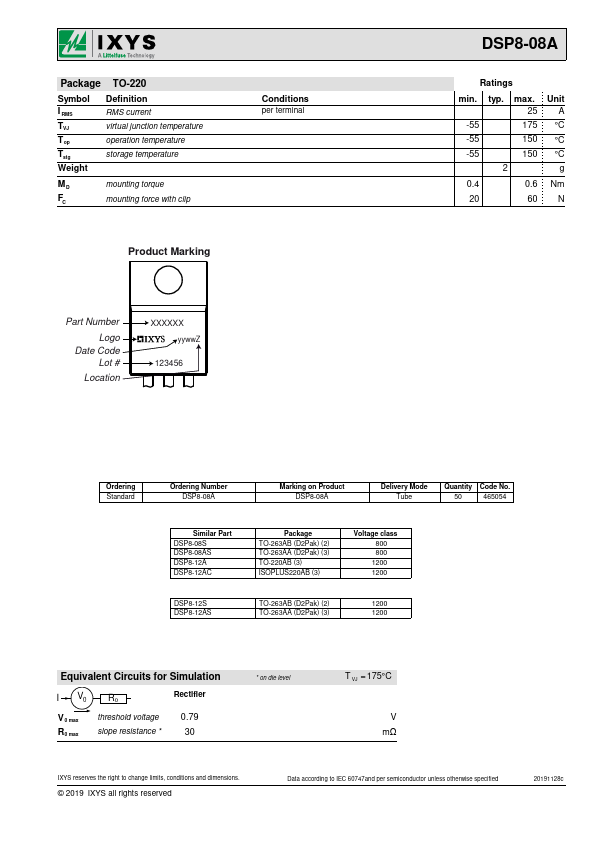

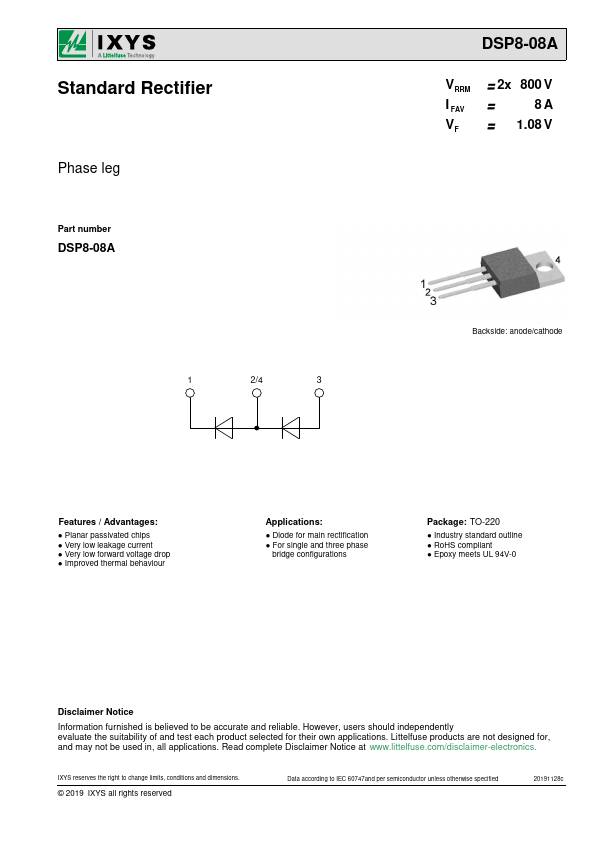

DSP8-08A Datasheet (136.76 KB)
* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop
* Improved thermal behaviour Applications:
* Diode for main rectification
* For single and three phase bridge configurations Package: TO-220
* Industry standard outline
DSP8-08A Datasheet (136.76 KB)
DSP8-08A
IXYS
136.76 KB
Standard rectifier.
📁 Related Datasheet
DSP8-08AC - Phase-leg Rectifier Diode
(IXYS)
Phase-leg Rectifier Diode
ISOPLUS220TM
Electrically Isolated Back Surface
VRSM V
900 1300
VRRM V
800 1200
Type
DSP 8-08AC DSP 8-12AC
DSP 8 VRRM = .
DSP8-08AS - Standard Rectifier
(IXYS)
Standard Rectifier
Phase leg
Part number
DSP8-08AS
1 2/4 3
DSP8-08AS
VRRM I FAV VF
= 2x 800 V = 8A = 1.08 V
Backside: anode/cathode
Features / Ad.
DSP8-08S - Standard Rectifier
(IXYS)
DSP8-08S
Standard Rectifier
VRRM I FAV VF
= 2x 800 V = = 8A 1.08 V
Phase leg
Part number
DSP8-08S
Backside: anode/cathode
1
2/4
3
Features .
DSP8-12A - Standard Rectifier
(IXYS)
DSP8-12A
Standard Rectifier
VRRM I FAV VF
= 2x 1200 V = = 8A 1.08 V
Phase leg
Part number
DSP8-12A
Backside: anode/cathode
1
2/4
3
Features.
DSP8-12AC - Phase-leg Rectifier Diode
(IXYS)
Phase-leg Rectifier Diode
ISOPLUS220TM
Electrically Isolated Back Surface
VRSM V
900 1300
VRRM V
800 1200
Type
DSP 8-08AC DSP 8-12AC
DSP 8 VRRM = .
DSP8-12AS - Standard Rectifier
(IXYS)
Standard Rectifier
Phase leg
Part number
DSP8-12AS
1 2/4 3
DSP8-12AS
VRRM I FAV VF
= 2x 1200 V = 8A = 1.08 V
Backside: anode/cathode
Features / A.
DSP8-12S - Standard Rectifier
(IXYS)
Standard Rectifier
Phase leg
Part number
DSP8-12S
1 2/4 3
DSP8-12S
VRRM I FAV VF
= 2x 1200 V = 8A = 1.08 V
Backside: anode/cathode
Features / Adv.
DSP8 - Phase-leg Rectifier Diode
(IXYS)
DSP 8
Phase-leg Rectifier Diode
VRRM = 800/1200 V IF(RMS) = 2x17 A IF(AV)M = 2x11 A
VRSM V 900 1300
VRRM V 800 1200
TO-220 AB Type DSP 8-08A DSP .
