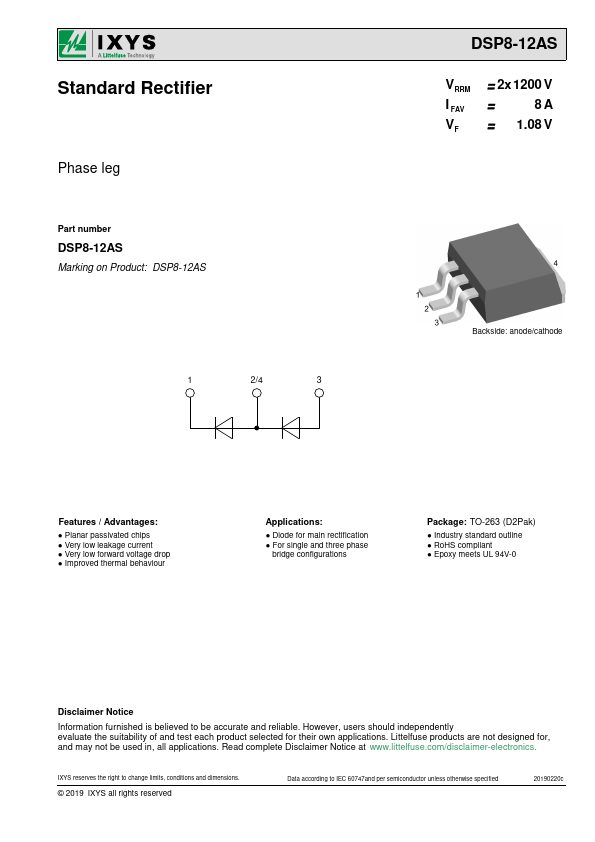

Part number:
DSP8-12AS
Manufacturer:
IXYS
File Size:
538.18 KB
Description:
Standard rectifier.
DSP8-12AS Datasheet (538.18 KB)
* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop
* Improved thermal behaviour Applications:
* Diode for main rectification

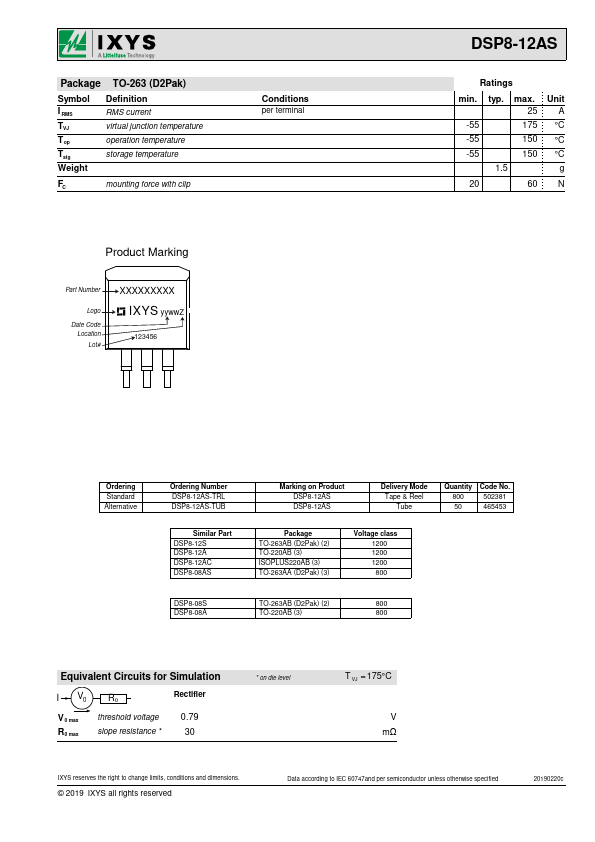

* For single and three phase bridge configurations Package: TO-263 (D2Pak)
* Industry standard ou

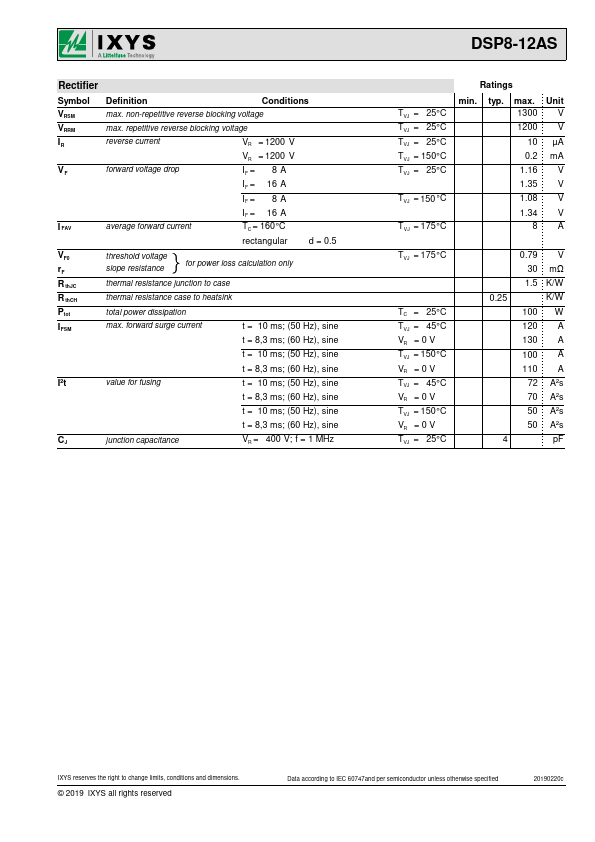

DSP8-12AS Datasheet (538.18 KB)
DSP8-12AS
IXYS
538.18 KB
Standard rectifier.
