DSS2x81-0045B Schottky Diode

DSS2x81-0045B Description

Schottky Diode High Performance Schottky Diode Low Loss and Soft Recovery Parallel legs Part number DSS2x81-0045B .

DSS2x81-0045B Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSS2x81-0045B Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters DSS2x81-0045B VRRM = 45 V I FAV = 2x 80 A VF = 0.63 V Backside: isolated Package:
* Housing: SOT-227B (minibloc)
* rIndustry standard outline
* rCu base plate internal DCB isola

📥 Download Datasheet

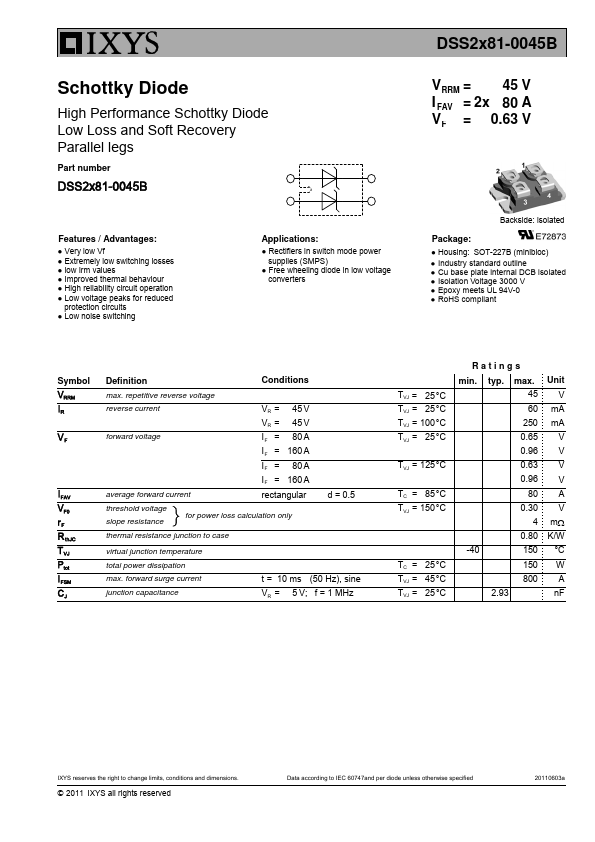

Preview of DSS2x81-0045B PDF

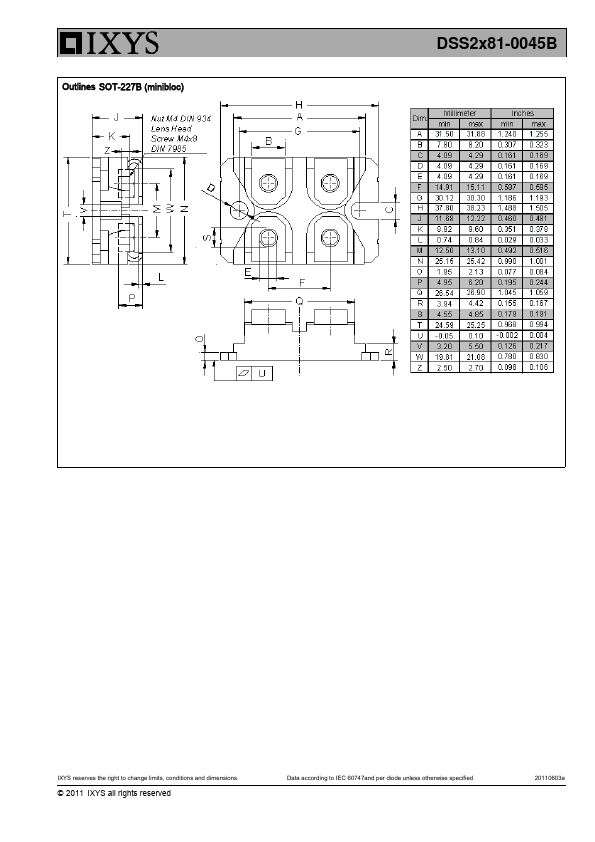

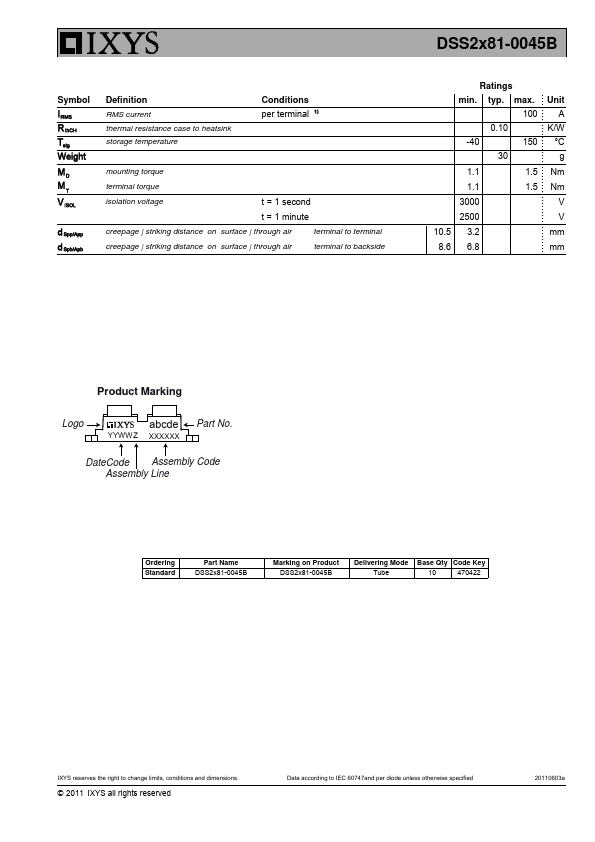

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSS2x81-0045B
Manufacturer
IXYS
File Size
135.21 KB
Datasheet
DSS2x81-0045B-IXYS.pdf
Description
Schottky Diode
