DSS2x61-01A, 2 x 60A High-Performance Schottky Diode

DSS2x61-01A 100 V, 2 x 60 A High-Performance Schottky Diode Low Loss and Soft Recovery Parallel Legs .

DSS2x61-01A-Littelfuse.pdf

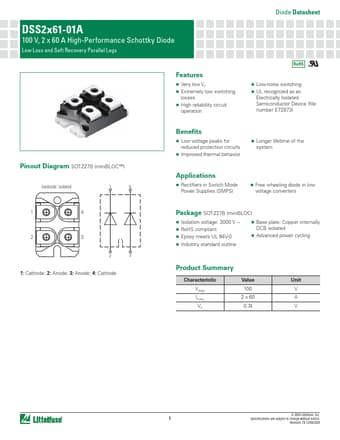

DSS2x61-01A Datasheet Preview — Preview of DSS2x61-01A PDF

Datasheet Details

Part number:

DSS2x61-01A

Manufacturer:

Littelfuse ↗

File Size:

447.34 KB

Description:

2 x 60A High-Performance Schottky Diode

Features

* Very low VF
* Extremely low switching losses
* High reliability circuit operation Diode Datasheet RoHS
* Low-noise switching
* UL recognized as an Electrically Isolated Semiconductor Device (ﬁle number E72873) Pinout Diagram SOT-227B (miniBLOC™) backside: isolated 1 4 Ben

Applications

* Rectiﬁers in Switch Mode Power Supplies (SMPS)
* Free wheeling diode in low voltage converters 1 4 2 3 2 3 1: Cathode; 2: Anode; 3: Anode; 4: Cathode Package SOT-227B (miniBLOC)
* Isolation voltage: 3000 V ~
* RoHS compliant
* Epoxy meets UL 94V-0
* Industry stand
