GUO40-08NO1 Standard Rectifier

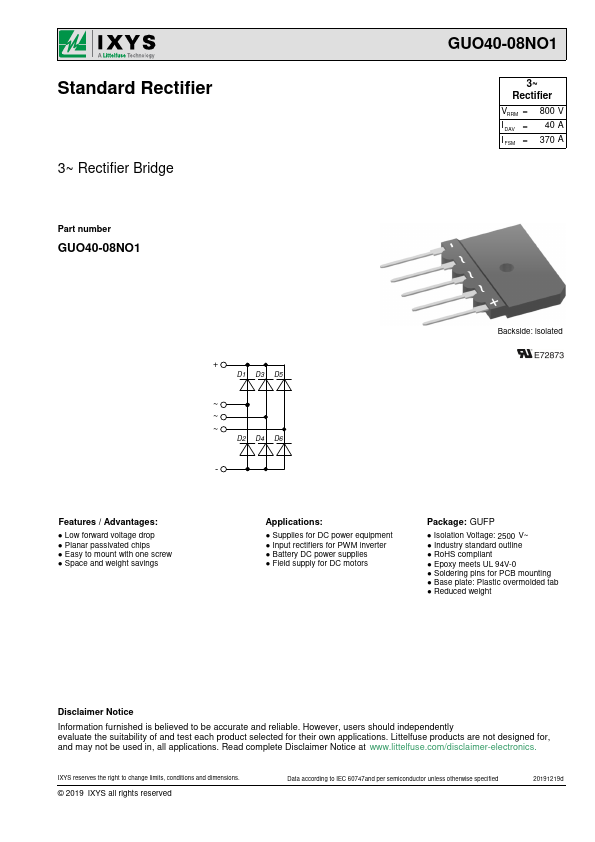

📥 Download Datasheet Datasheet Preview Page 1

Description

Standard Rectifier 3~ Rectifier Bridge Part number GUO40-08NO1 GUO40-08NO1 3~ Rectifier VRRM = I DAV = I FSM = 800 V 40 A 370 A + D1 D3 D5 ~ ~ ~ .

📥 Download Datasheet

Preview of GUO40-08NO1 PDF

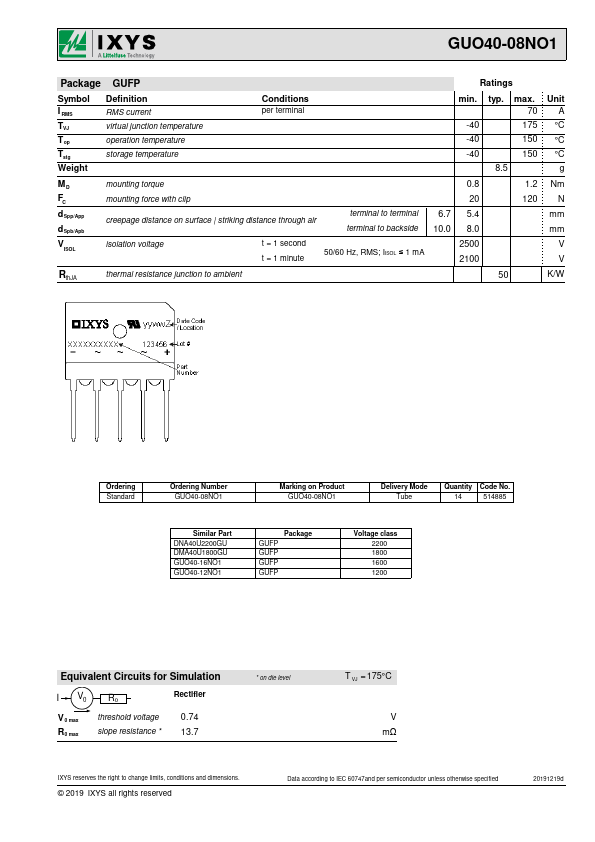

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GUO40-08NO1
Manufacturer
IXYS
File Size
192.64 KB
Datasheet
GUO40-08NO1-IXYS.pdf
Description
Standard Rectifier

Features

* / Advantages:
* Low forward voltage drop
* Planar passivated chips
* Easy to mount with one screw

Applications

* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: GUFP
* Isolation Voltage: 2500 V~
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB
