* / Advantages:
* Low forward voltage drop
* Planar passivated chips
* Easy to mount with one screw
* Space and weight savings Applications:
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors
GUO40-12NO1 Datasheet (198.92 KB)
GUO40-12NO1
IXYS
198.92 KB

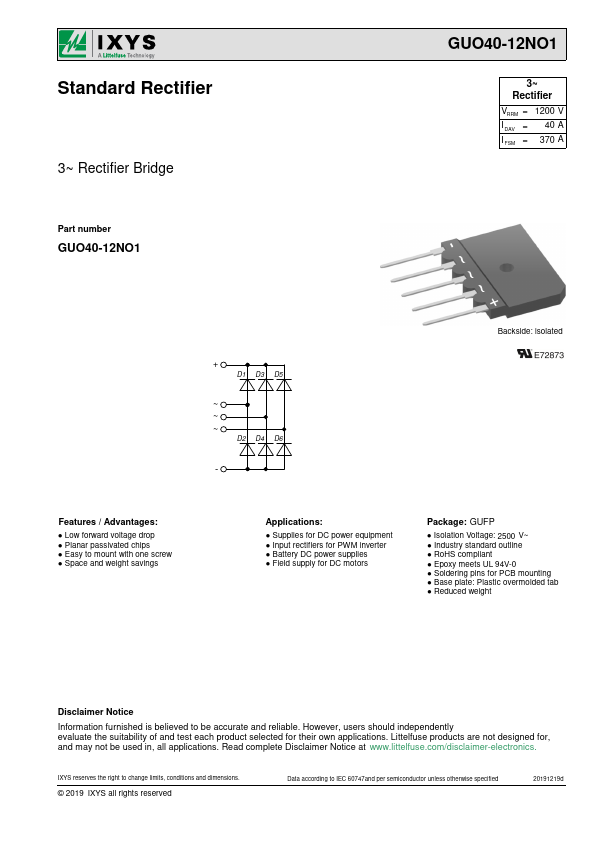

Standard rectifier.
Standard Rectifier 3~ Rectifier Bridge Part number GUO40-12NO1 GUO40-12NO1 3~ Rectifier VRRM = I DAV = I FSM = 1200 V 40 A 370 A + D1 D3 D5 ~ ~ ~.
