IX2113 Datasheet - IXYS

600V High and Low Side Gate Driver

IX2113 Features

* Floating Channel for Bootstrap Operation to +600V with Absolute Maximum Rating of +700V

* Outputs Capable of Sourcing and Sinking 2A

* Gate Drive Supply Range From 10V to 20V

* Enhanced Robustness due to SOI Process

* Tolerant to Negative Voltage Transients:

IX2113 General Description

The IX2113 is a high voltage integrated circuit that can drive high speed MOSFETs and IGBTs that operate at up to +600V. The IX2113 is configured with independent high-side and low-side referenced output channels, both of which can source and sink 2A. The floating high-side channel can drive an N-ch.

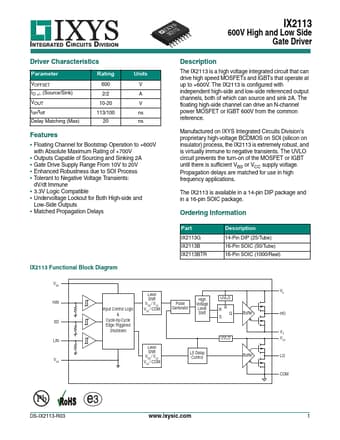

IX2113 Datasheet (306.94 KB)

IX2113 Datasheet Preview — Preview of IX2113 PDF

Datasheet Details

Part number:

IX2113

Manufacturer:

IXYS

File Size:

306.94 KB

Description:

600v high and low side gate driver.
INTEGRATED CIRCUITS DIVISION IX2113 600V High and Low Side Gate Driver Driver Characteristics Parameter Rating VOFFSET IO +/- (Source/Sink) VOUT .
